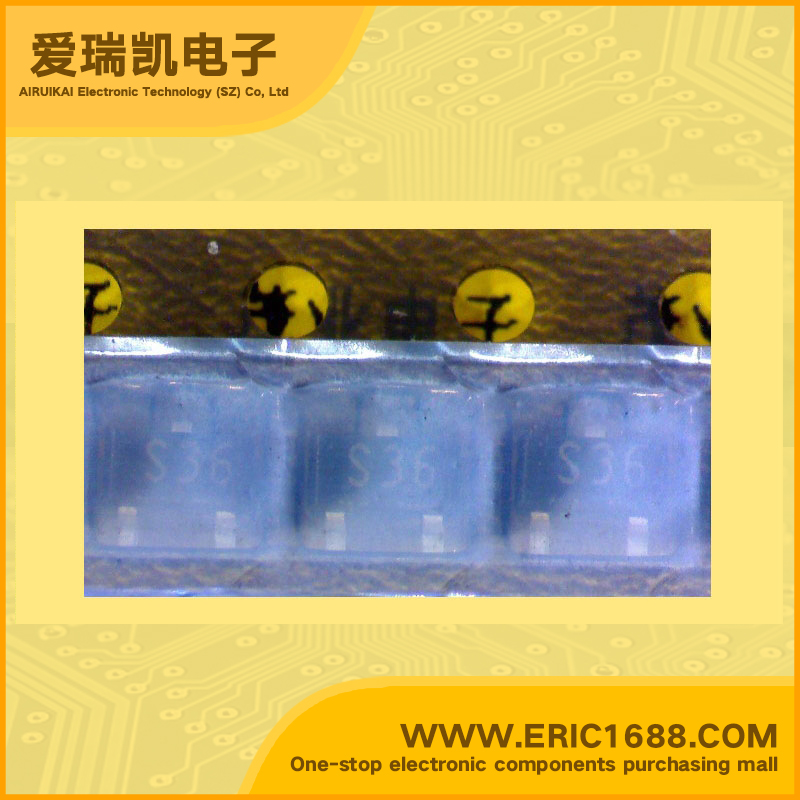

FP1J3P PNP Bipolar Digital Transistor (BRT) -25V -100mA/-0.1A 100 0.2W/200mW SOT-23/SC-59 marking S36 switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-25V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-25V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)3.3KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)10KΩ/Ohm
电阻比(R1/R2) Resistance Ratio0.33
直流电流增益hFE DC Current Gain(hFE)100
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation0.2W/200mW
Description & ApplicationsFEATURES • COMPOUND TRANSISTOR • on-chip resistor PNP silicon epitaxial transistor For mid-speed switching • Up to 0.7 A current drive available • On-chip bias resistor • Low power consumption during drive
描述与应用特点 •复合晶体管 •片上电阻PNP硅外延晶体管中速开关 •高达0.7 A的电流驱动器可用 •片上偏置电阻 •低功耗,在驱动器
