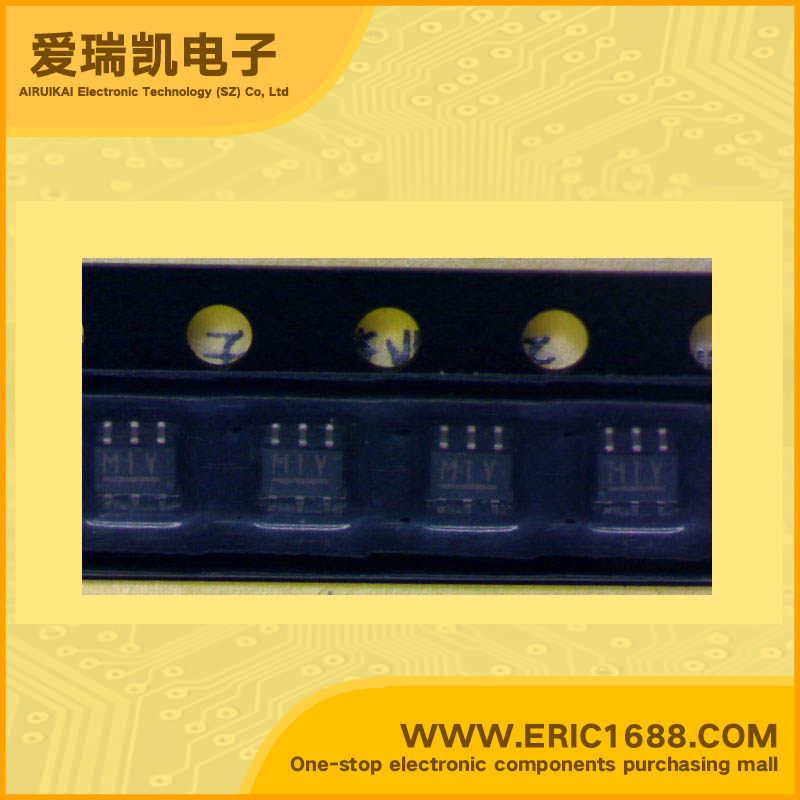

HN2A01FU-Y PNP+PNP Complex Bipolar Transistor -50V -0.15A HEF=120~240 SOT-363 marking M1Y switch and digital circuit application

Hot selling goods

Product description

V(BR) CBO

Collector-Base Voltage

 -50V

V(BR) CEO

Collector-Emitter Voltage

 -50V
Collector Current(IC)  -150MA/-0.15A
Transtion Frequency(fT)  80MHZ
DC Current Gain(hFE)  120~240

VCE(sat)

Collector-Emitter Saturation Voltage

 -0.1V~-0.3V
Power Dissipation (Pd)  200MW/0.2W
Description & Applications  Audio Frequency General Purpose Amplifier Applications
 Small package (dual type)
High voltage and high current : VCEO = −50V, IC = −150mA (max)
 High hFE : hFE = 120~400
Excellent hFE linearity : hFE (IC = −0.1mA) / (IC = −2mA)
= 0.95 (typ.)
