IMX9 NPN+NPN Complex Bipolar Transistor 25V 500mA HEF=560~2700 SOT-163/SMT6/SC-74 marking X9 switch and digital circuit application

Model：IMX9

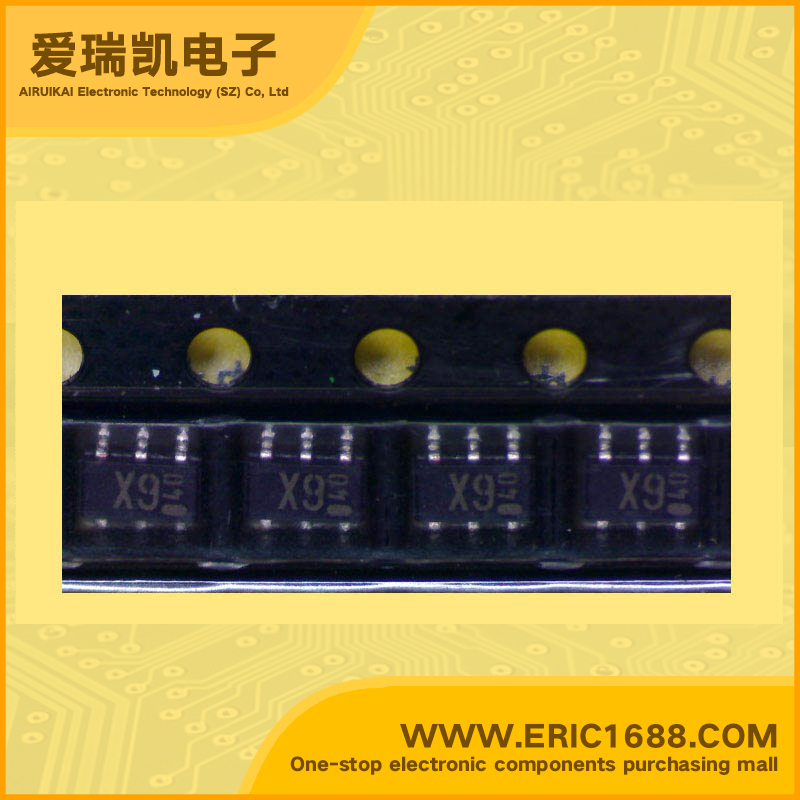

Mark / screen / code / typing：X9
Manufacturer：
Date Code：nopb 05NOPB600
Package：SOT-163/SMT6/SC-74
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	25V
V(BR) CEO Collector-Emitter Voltage	20V
Collector Current(IC)	500MA/0.5A
Transtion Frequency(fT)	350MHZ
DC Current Gain(hFE)	560~2700
VCE (sat) Collector-Emitter Saturation Voltage	0.4V
Power Dissipation （Pd）	300MW/0.3W
Description & Applications	General purpose transistor Two 2SD2114K chips in a SMT package
Technical Documentation Download	Read Online
