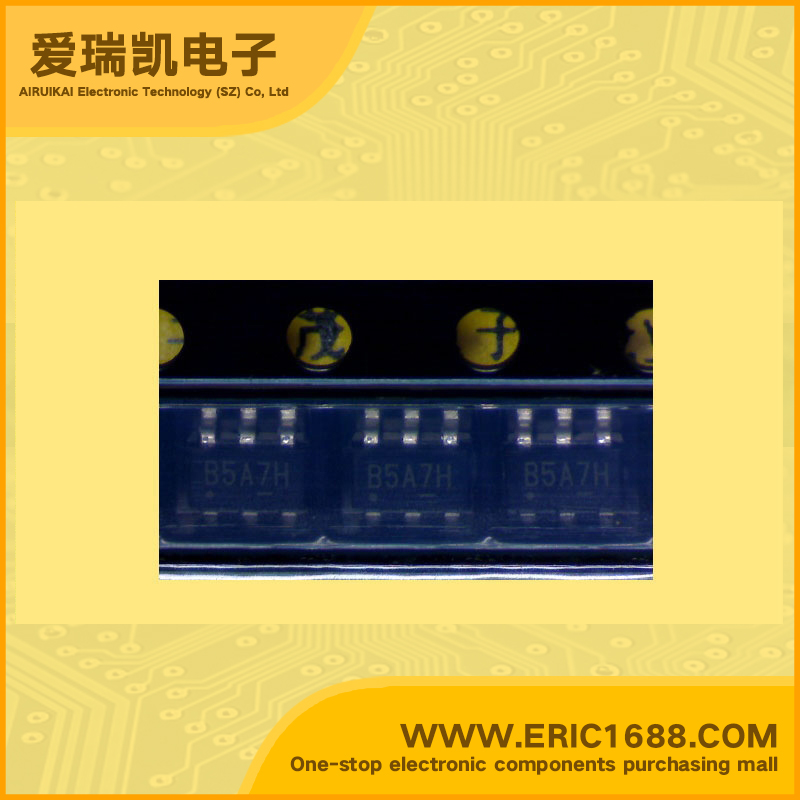

IRLMS1503TR MOSFET N-Channel 3.2A SOT-163/TSOP-6 marking B5A

Model：IRLMS1503TR
Mark / screen / code / typing：B5A
Manufacturer：
Date Code：05+ 07+ROHS3KM
Package：SOT-163/TSOP-6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage
最大栅源极电压Vgs(±) Gate-Source Voltage	20V
最大漏极电流Id Drain Current	3.2A
源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance	0.100Ω/Ohm @2.2A,10V
开启电压Vgs（th） Gate-Source Threshold Voltage	1.0V
耗散功率Pd Power Dissipation	1.7W
Description & Applications
描述与应用
