KRA552U PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 200mW/0.2W R1=10KΩ R2=10KΩ SOT-353/usv/SC70-5 marking PB switching inverting interface driver circuit

Model：KRA552U

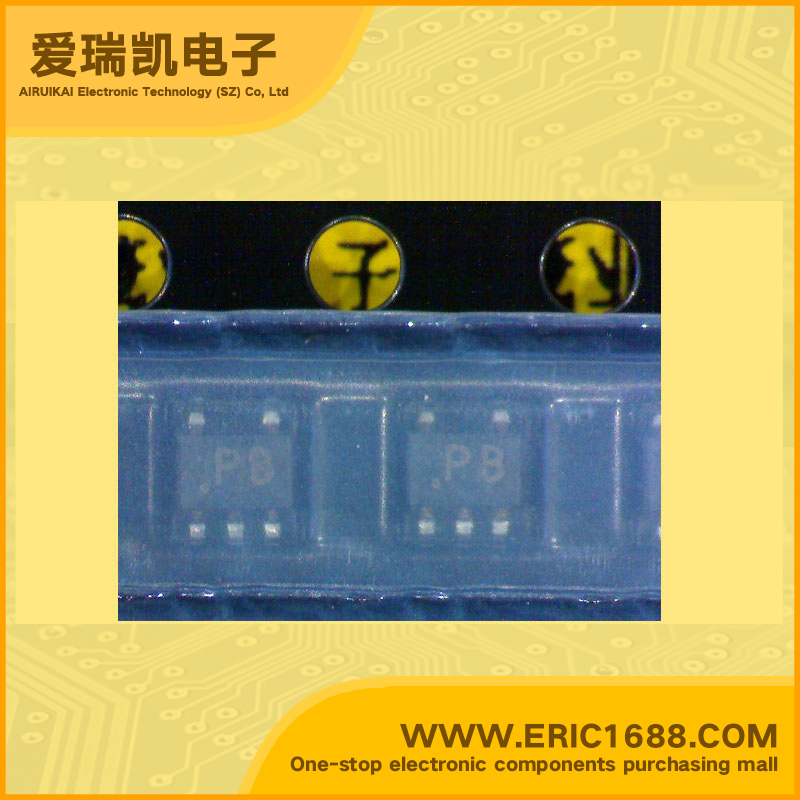

Mark / screen / code / typing：PB
Manufacturer：
Date Code：05+
Package：SOT-353/usv/SC70-5
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100MA/-0.1A
Input Resistance(R1)	10KΩ
Base-Emitter Resistance(R2)	10 KΩ
Base-Emitter Input Resistance Ratio (R1/R2)	1
DC Current Gain(hFE)
Transtion Frequency(fT)	200MHZ
Power Dissipation （Pd）	0.2W
Description & Applications	SWITCHING APPLICATION. INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION. FEATURES With Built-in Bias Resistors. Simplify Circuit Design. Reduce a Quantity of Parts and Manufacturing Process. High Packing Density
Technical Documentation Download	Read Online
