KTA501U-Y PNP+PNP Complex Bipolar Transistor -50V -150mA HEF=120~240 SOT-353/USV marking S4 switch and digital circuit application

Model：KTA501U-Y

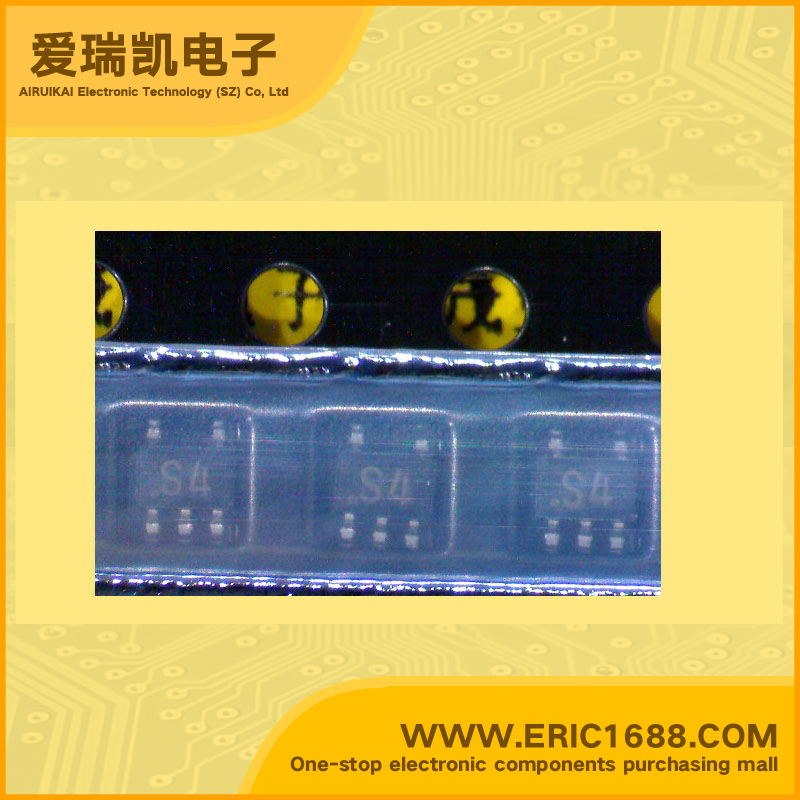

Mark / screen / code / typing：S4
Manufacturer：
Date Code：05+ 05+
Package：SOT-353/USV
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-150MA/-0.15A
Transtion Frequency(fT)	80MHZ
DC Current Gain(hFE)	120~240
VCE(sat) Collector-Emitter Saturation Voltage	-0.3V
Power Dissipation (Pd)	0.2W
Description & Applications	Features•EPITAXIAL PLANAR PNP TRANSISTOR•A super-minimold package houses 2 transistor.•Excellent temperature response between these 2 transistor.•High pairing property in hFE.•The follwing characteristics are common for Q1, Q2•GENERAL PURPOSE APPLIC
Technical Documentation Download	Read Online
