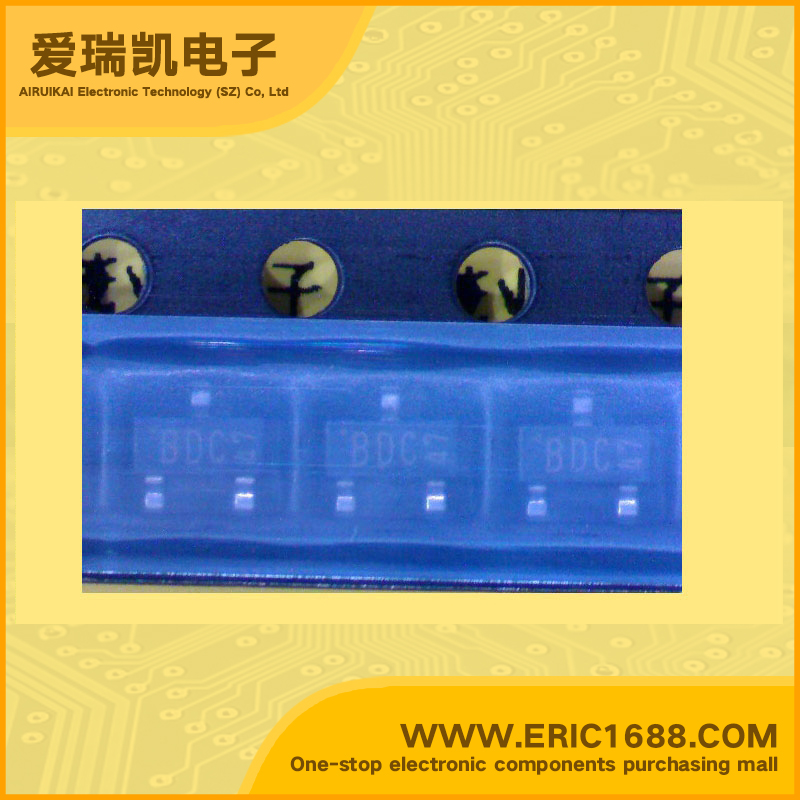

KTC9014S-C-RTK NPN Transistors(BJT) 60V 150mA/0.15A 60Mhz 100~1000 100mV~250mV SOT-23/SC-59 marking switch

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)		60V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)		50V
集电极连续输出电流IC
Collector Current(IC)		150mA/0.15A
截止频率fT
Transtion Frequency(fT)		60Mhz
直流电流增益hFE
DC Current Gain(hFE)		100~1000
管压降VCE（sat）
Collector-Emitter Saturation Voltage		100mV~250mV
耗散功率Pc
Power Dissipation
Description & ApplicationsGENERAL PURPOSE APPLICATION. SWITCHING APPLICATION. Excellent hFE Linearity : hFE(IC=-0.1mA)/hFE(IC=-2mA)=0.95(Typ.). Low Noise :NF=1dB(Typ.) at f=1kHz. Complementary to KTC9014S.
描述与应用通用应用。 开关中的应用。 优秀HFE线性 ：HFE（IC=0.1毫安）/ HFE（IC=-2毫安）= 0.95（典型值）。 低噪音：NF=1分贝（典型值）在f=1kHz时。 KTC9014S互补。
