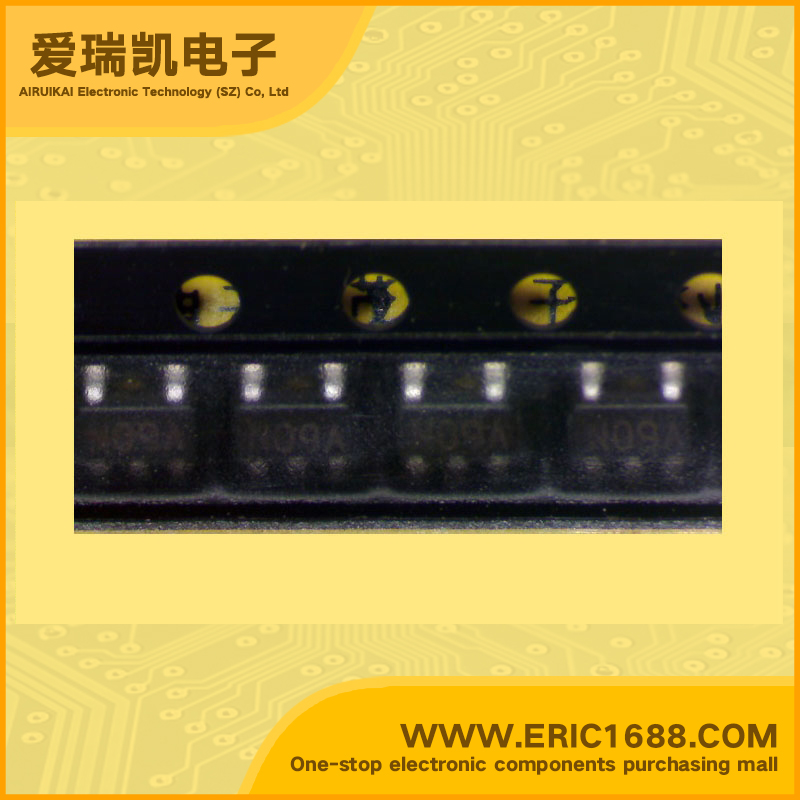

LMV431ACM5X Voltage Reference Power Management IC 1.24V~30V SOT-153/SOT23-5 marking N09A Low VoltageAdjustable Precision shunt regulator
| 参考类型 Reference Type | 旁路，可调节，精度 Shunt, Adjustable, Precision |
| 输出电压Vo Voltage - Output | 1.24V~30V |
| 误差 Tolerance | ±1% |
| 温度系数 Temperature Coefficient | |
| 输入电压 Voltage - Input | 1.24V~30V |
| 阴极电流 Current - Cathode | 80µA |
| 输出电流IOUT Current - Output | 15mA |
| Description & Applications | FEATURES • Low-Voltage (1.24V) Adjustable Precision Shunt Regulators • Low Voltage Operation/Wide Adjust Range (1.24V/30V) • 0.5% Initial Tolerance (LMV431B) • Temperature Compensated for Industrial Temperature Range (39 PPM/˚C for the LMV431AI) • Low Operation Current (55µA) • Low Output Impedance (0.25Ω) • Fast Turn-On Response • Low Cost Applications • Shunt Regulator • Series Regulator • Current Source or Sink • Voltage Monitor • Error Amplifier • 3V Off-Line Switching Regulator • Low Dropout N-Channel Series Regulator |
| 描述与应用 | 特点 •低电压（1.24V）可调精密并联稳压器 •低工作电压/宽调节范围（1.24V/30V） •0.5％的初始容差（LMV431B） •温度补偿为工业级温度范围（39 PPM /˚C LMV431AI） •低工作电流（55μA） •低输出阻抗（0.25Ω） •快速导通响应 •低成本 应用 •并联稳压器 •系列稳压器 •电流源或接收 •电压监视器 •误差放大器 •3V离线式开关稳压器 •低压差N-通道系列稳压器 |
