MCH6301 MOSFET P-Channel -20V -3A 220mohm SOT-363 marking JA low on-resistance ultra high-speed switch 2.5V drive

Model：MCH6301

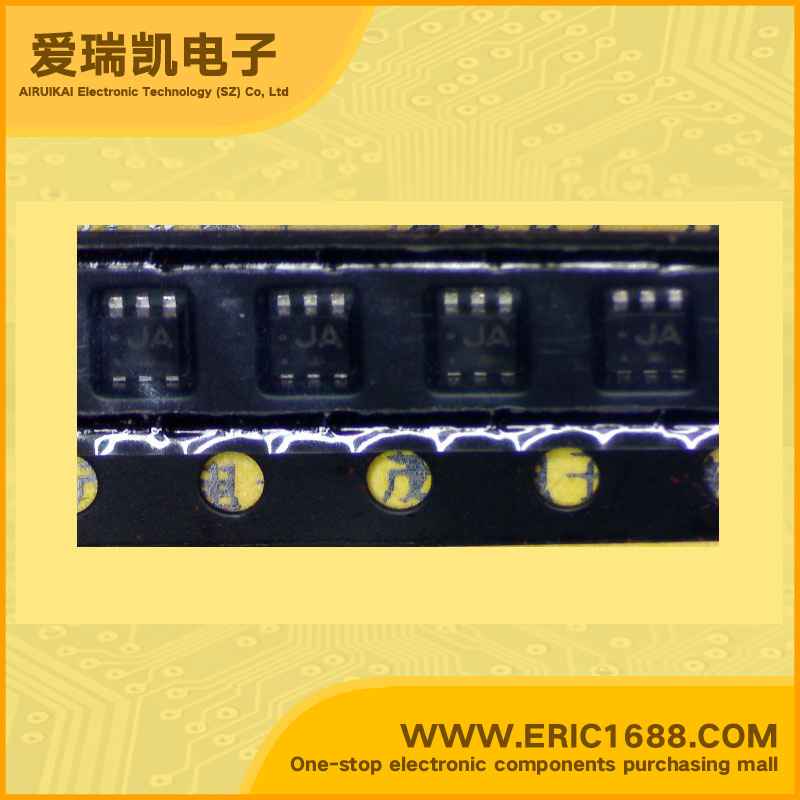

Mark / screen / code / typing：JA
Manufacturer：
Date Code：05+ 05+
Package：SOT-363/SC70-6/MCPH6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-20V
最大栅源极电压Vgs(±) Gate-Source Voltage	-10V
最大漏极电流Id Drain Current	-3A
源漏极导通电阻Rds Drain-Source On-State Resistance	220mΩ@ VGS = -2.5V, ID = -0.5A
开启电压Vgs（th） Gate-Source Threshold Voltage	-0.4~-1.4V
耗散功率Pd Power Dissipation	1.6W
Description & Applications	Ultrahigh-Speed Switching Applications Features · Low ON resistance. · Ultrahigh-speed switching. · 2.5V drive.
描述与应用	超高速开关应用特点 ·低导通电阻。 ·超高速开关。 ·2.5V驱动器。
