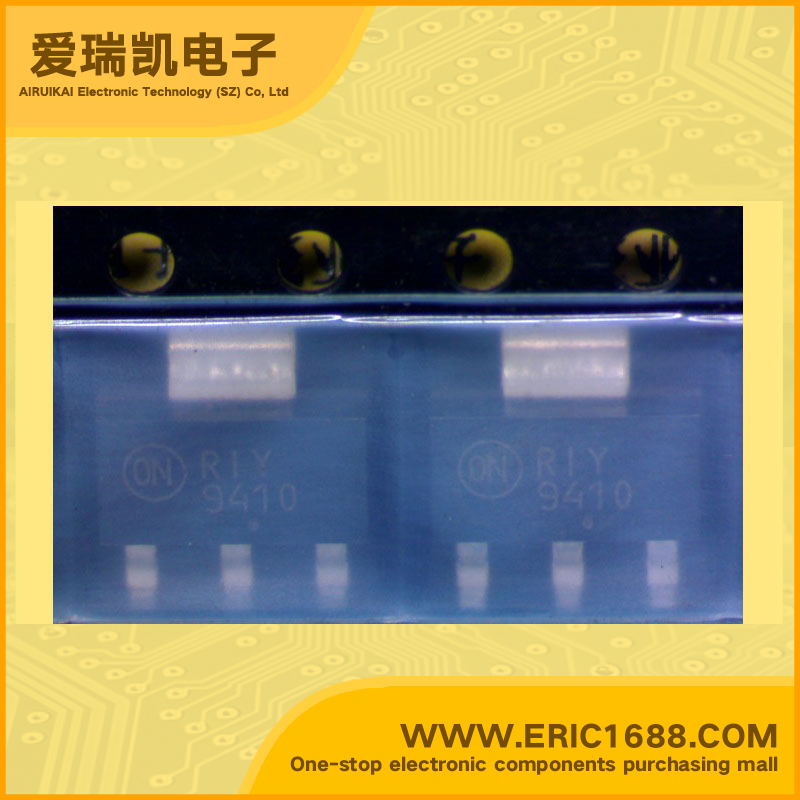

MMJT9410T1 NPN Transistors(BJT) 45V 3A 72MHz 60~85 150mV~450mV SOT-223 marking 9410 bipolar power

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
45V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
30V
集电极连续输出电流IC
Collector Current(IC)
3A
截止频率fT
Transtion Frequency(fT)
72MHz
直流电流增益hFE
DC Current Gain(hFE)
60~85
管压降VCE(sat)
Collector-Emitter Saturation Voltage
150mV~450mV
耗散功率Pc
Power Dissipation
Description & ApplicationsBipolar Power Transistors NPN Silicon • Collector –Emitter Sustaining Voltage — VCEO(sus) = 30 Vdc (Min) @ IC = 10 mAdc • High DC Current Gain — hFE = 85 (Min) @ IC = 0.8 Adc = 60 (Min) @ IC = 3.0 Adc • Low Collector –Emitter Saturation Voltage — VCE(sat) = 0.2 Vdc (Max) @ IC = 1.2 Adc = 0.45 Vdc (Max) @ IC = 3.0 Adc • SOT–223 Surface Mount Packaging
描述与应用双极功率晶体管 NPN硅 集电极 - 发射极耐受电压 - VCEO(SUS)   = 30 VDC(最小)@ IC= 10 MADC •高DC电流增益 - HFE=85(分钟)@ IC= 0.8 ADC =60(分钟)@ IC= 3.0 ADC •低集电极 - 发射极饱和电压 - VCE(sat)的   = 0.2 VDC(最大)@ IC= 1.2 ADC = 0.45 VDC(最大)@ IC= 3.0 ADC •SOT-223表面贴装包装
