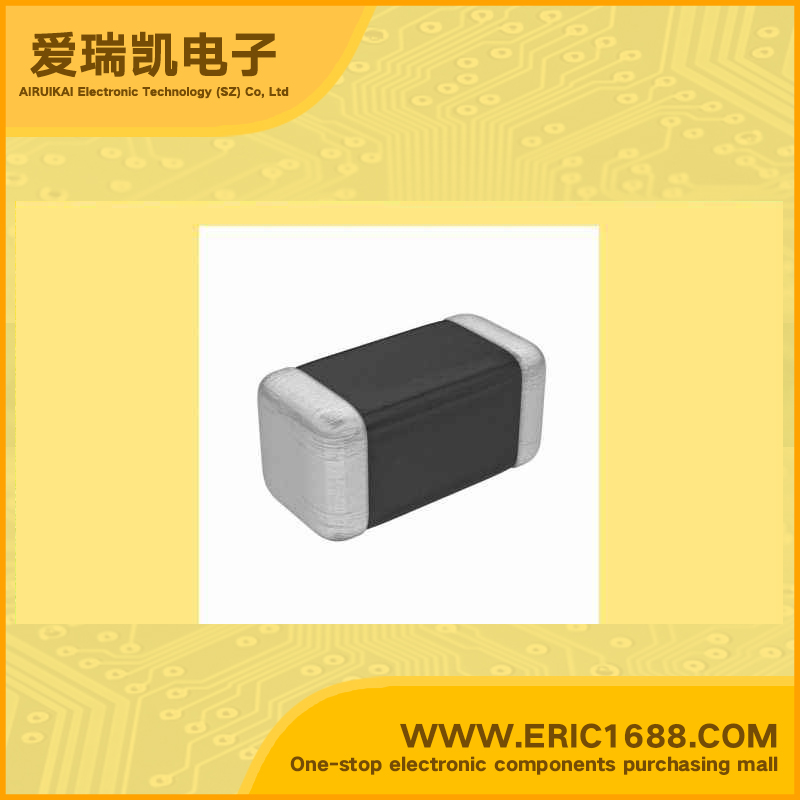

Ferrite Bead MMZ0603S241CT000 0201-240R
| 不同频率时的阻抗Impedance @ Frequency | 240Ω@100MHz |
| 额定电流Current Rating | 200mA |
| DC电阻DCRDC Resistance | 570mΩ |
| Description & Applications | FEATURES • This is a multilayered chip bead product with dimensions of L0.6×W0.3×T0.3mm. • The product is magnetically shielded, allowing high density mounting. • We refined the rules for internal conductor design to reduce floating capacity between conductors, which in turn has contributed to a dramatic improvement in high frequency characteristics. We have also been able to expand and reinforce the EMI suppression in the GHz range. • It is a product conforming to RoHS directive. APPLICATIONS Removal of signal line noises of cellular phones, portable audio players, various modules, DSCs, portable game machines, etc. |
| 描述与应用 | 特点 •这是一个多层片式磁珠产品尺寸 L0.6×W0.3×T0.3mm。 •产品防磁，允许高密度 安装。 •我们细化的规则，内部导线设计，以减少 浮动导体之间的能力，这反过来又 贡献高频率显着改善 的特点。我们也已经能够扩大和加强 在GHz范围内的EMI抑制。 •它是一个产品，符合RoHS指令。 应用 去除信号线的噪声，蜂窝电话，便携式音频 播放器，各种模块，数码相机，便携式游戏机等。 |
