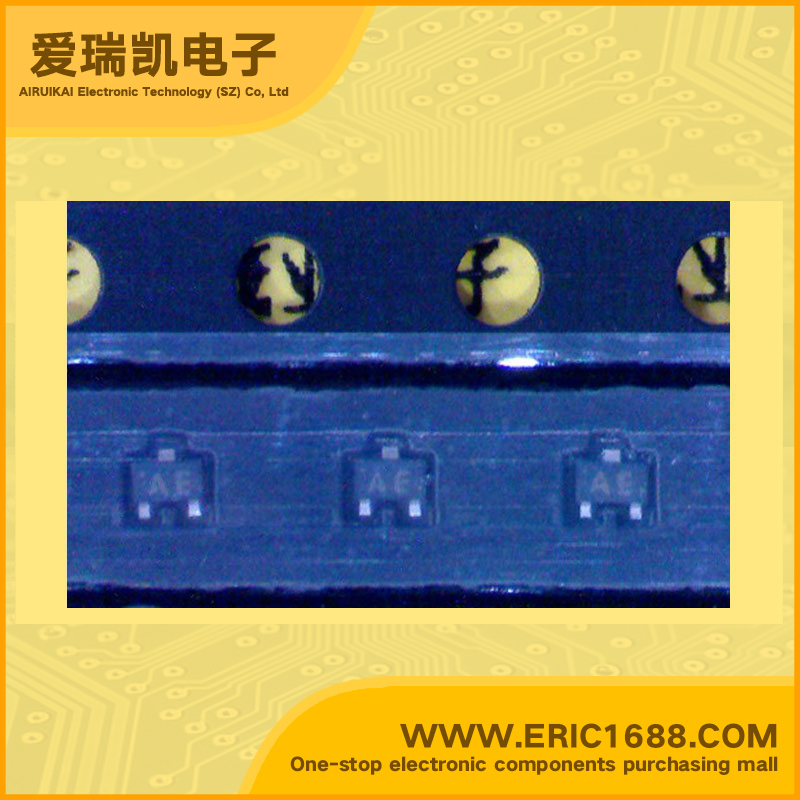

MT3S04T NPN Transistors(BJT) 10V 40mA 2GHz~5GHz 80~160 SOT-623/TESM marking AE VHF-UHF band low noise amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 10V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 5V |
| 集电极连续输出电流IC Collector Current(IC) | 40mA |
| 截止频率fT Transtion Frequency(fT) | 2GHz~5GHz |
| 直流电流增益hFE DC Current Gain(hFE) | 80~160 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 100mW/0.1W |
| Description & Applications | • VHF~UHF Band Low Noise Amplifier Applications • Low noise figure: NF = 1.2dB (at f = 1 GHz) • High gain: gain = 12.5dB (at f = 1 GHz) |
| 描述与应用 | •VHF〜UHF频段低噪声放大器的应用 •低噪声系数NF=1.2分贝“（在f = 1千兆赫） •高增益：增益=12.5分贝（在f= 1千兆赫） |
