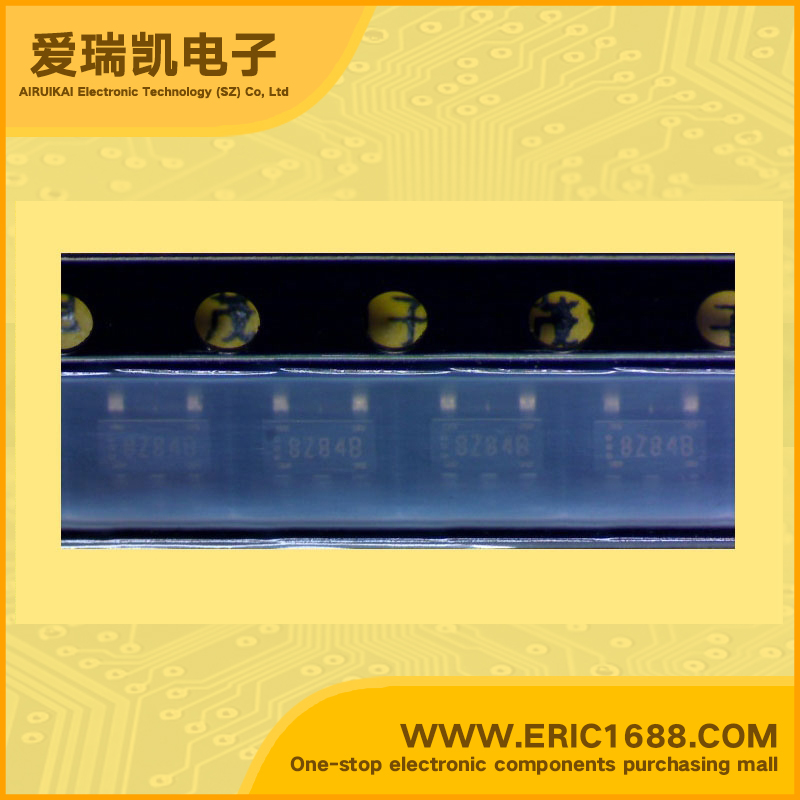

NC7SZ384M5X Signal Switch, Multiplexer, Decoder SOT-153/SOT23-5/SC-74A marking 8z84
| 逻辑类型 Logic Type | 总线开关 Bus Switch |
| 电路数 Number of Circuits | 1 x 1:1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | |
| 静态电流Iq Current - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流 Current - Output High, Low | 4 V ~ 5.5 V |
| 低逻辑电平 Logic Level - Low | The NC7SZ384 provides 1-bit of ultra high-speed CMOS TTLcompatible bus switch. The low On Resistance of the switch allows inputs to be connected to outputs with minimal propagation delay and without generating additional ground bounce noise. The device is organized as a 1-bit switch with a bus enable (OE) signal. When OE is LOW, the switch is on and Port A is connected to Port B. When OE is HIGH, the switch is open and a high-impedance state exists between the two ports. Space saving SOT23 or SC70 5-lead package Ultra small MicroPak leadless package 5Ω switch connection between two ports Minimal propagation delay through the switch Low ICC Zero bounce in flow-through mode Control inputs compatible with TTL level |
| 高逻辑电平 Logic Level - High | NC7SZ384提供1位的超高速CMOS TTL兼容总线开关。低导通电阻的开关以最小的传播延迟和不产生额外的接地反弹噪声允许输入连接到输出。该设备被组织为一个1位开关与一个总线使能信号（OE）。当OE为低电平时，开关和端口A连接到端口B.当OE为高电平时，开关打开和高阻抗状态之间存在着两个端口。 节省空间的SOT23或SC70 5引脚封装 超小型的MicroPakTM无铅封装 5Ω交换机连接两个端口之间 最小的传播延迟通过开关 低ICC 零流量反弹模式 控制输入与TTL电平兼容 |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
