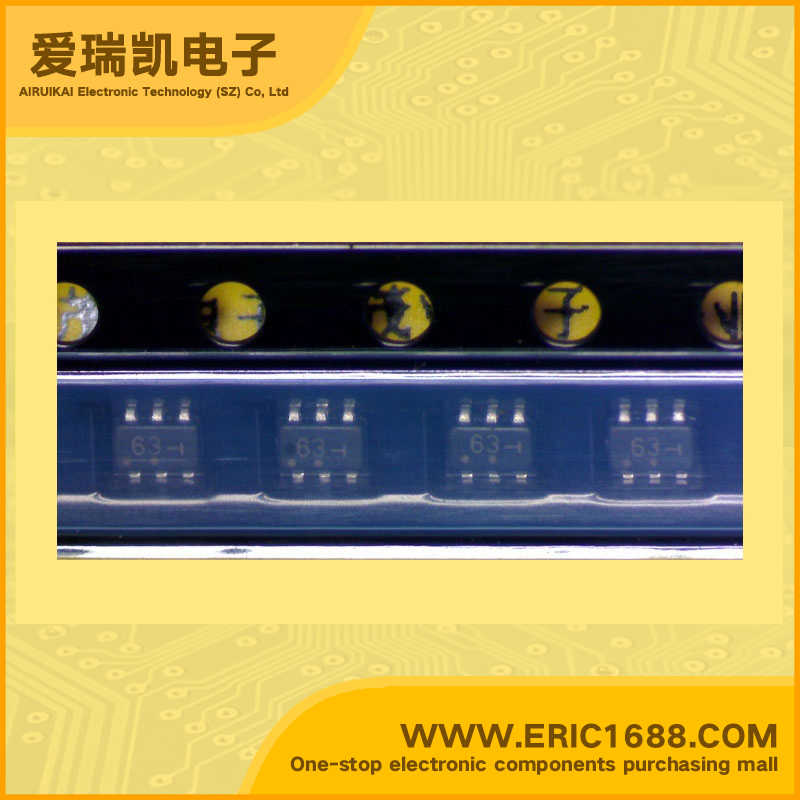

NUP4202W1T1G TVS/ESD 5.0V 28A SOT-353/SC-88A marking 63

Hot selling goods

Product description
极性
Polarization
双向 Bidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
5.0V
反向击穿电压VBR
Breakdown Voltage
6.0V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
500W
峰值脉冲电流IPPm
Peak Forward Surge Current
28A
额定耗散功率Pd
Power dissipation
Description & ApplicationsLow Capacitance SC−88 Diode−TVS Array for High Speed Data Lines Protection;Features • Low Capacitance SC−88Diode−TVS Array for High Speed Data Lines Protection • Low Capacitance (3 pF Maximum Between I/O Lines) • ESD Rating of Class 3B (Exceeding 8 kV) per Human Body model and Class C (Exceeding 400 V) per Machine Model • Protection for the Following IEC Standards: IEC 61000−4−2 (ESD) 15 kV (air) 8 kV (contact) IEC 61000−4−4 (EFT) 40 A (5/50 ns) IEC 61000−4−5 (Lightning) 23 A (8/20 s) • UL Flammability Rating of 94 V−0 • This is a Pb−Free Device
描述与应用低电容SC-88 二极管TVS阵列高 高速数据线 保护;特点 •低电容(3 pF最大在I / O线之间 •3B级(超过8 kVESD额定值每人体模型 和C类(超过400 V每机模型 •保护下列IEC标准: IEC 61000-4-2(ESD15 kV(空气8 kV(接触 IEC61000-4-4(EFT),40(5/50纳秒 IEC61000-4-5(闪电)23(8/20·S •UL94 V-0阻燃等级 •这是一个无铅设备
