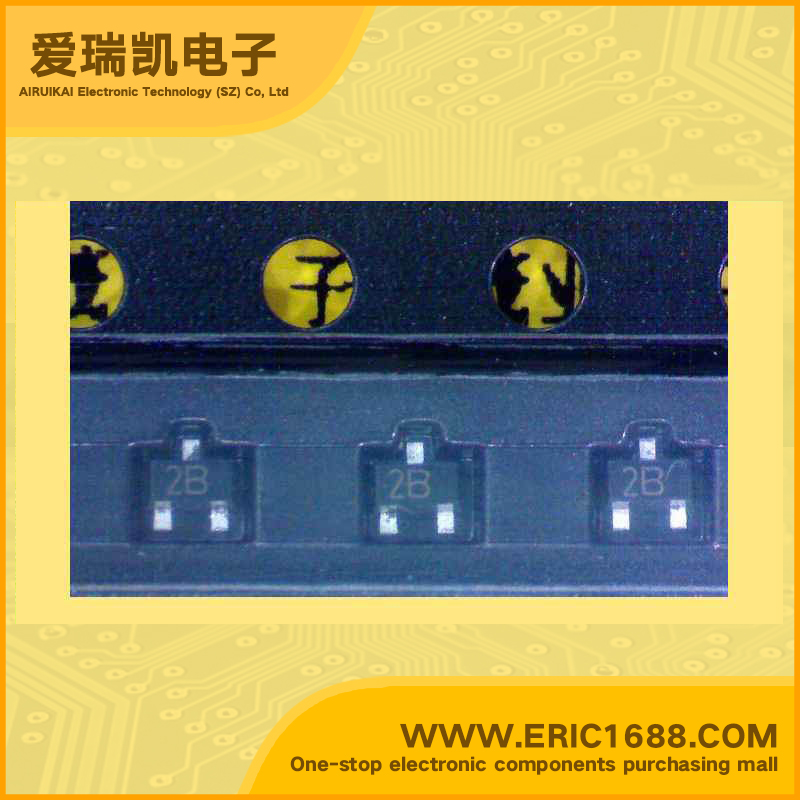

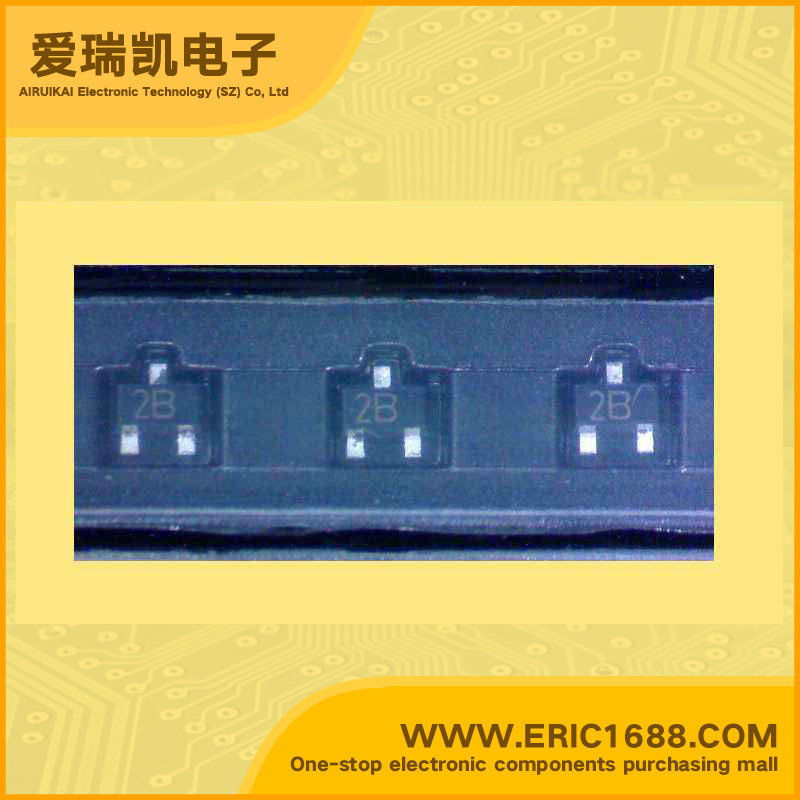

PBSS3515F PNP transistors(BJT) -15V -250mA/-0.25A 280MHz 200 -250mV/-0.25V SOT-523/SC-75 marking ZB DC-DC converter/backlight inverter

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-15V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
−15V
集电极连续输出电流IC
Collector Current(IC)
-250mA/-0.25A
截止频率fT
Transtion Frequency(fT)
280MHz
直流电流增益hFE
DC Current Gain(hFE)
200
管压降VCE(sat)
Collector-Emitter SaturationVoltage
-250mV/-0.25V
耗散功率Pc
PoWer Dissipation
250mW/0.25W
Description & Applications15 V low VCE(sat) PNP transistor FEATURES • Low collector-emitter saturation voltage • High current capabilities • Improved thermal behaviour due to flat leads. • NPN complement: PBSS2515F. APPLICATIONS • General purpose switching and muting • Low frequency driver circuits • LCD backlighting • Audio frequency general purpose amplifier applications • Battery driven equipment (mobile phones, video cameras and hand-held devices).
描述与应用15伏的低VCE(sat)的PNP晶体管 特点 •低集电极 - 发射极饱和电压 •高电流能力 •改进的热行为由于平坦的线索。 •NPN补充:PBSS2515F。 应用 •通用开关和静音 •低频驱动电路 •LCD背光 •音频通用放大器应用 •电池驱动设备(手机,摄像机和手持设备)
