PBSS3515VS PNP+PNP Complex Bipolar Transistor -15V -500mA 280MHZ HEF=90~200 SOT-363/SC-88 marking 35 switch and digital circuit application

Model：PBSS3515VS

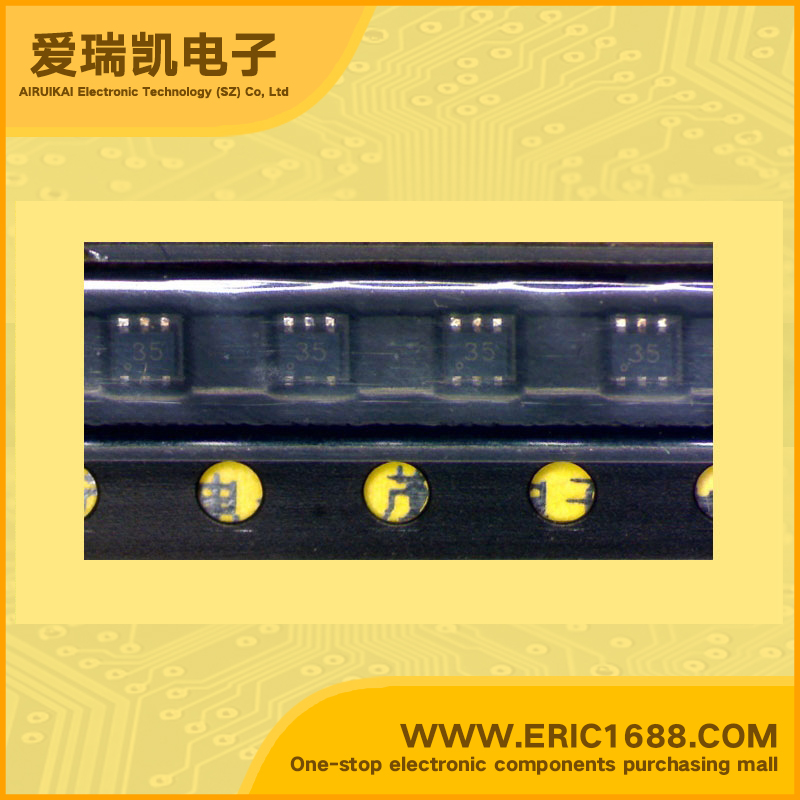

Mark / screen / code / typing：35
Manufacturer：
Date Code：05+NOPB10K 05+NOPB10K
Package：SOT-363/SC-88
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-15V
V(BR) CEO Collector-Emitter Voltage	-15V
Collector Current(IC)	-500MA/-0.5A
Transtion Frequency(fT)	280MHZ
DC Current Gain(hFE)	90~200
VCE(sat) Collector-Emitter Saturation Voltage	-0.25V
Power Dissipation (Pd)	300MW/0.3W
Description & Applications	15 V low VCE(sat) PNP double transistor APPLICATIONS • General purpose switching and muting • Low frequency driver circuits • LCD backlighting • Audio frequency general purpose amplifier applications • Battery driven equipment (mobile phones, video cameras and hand-held devices).
Technical Documentation Download	Read Online
