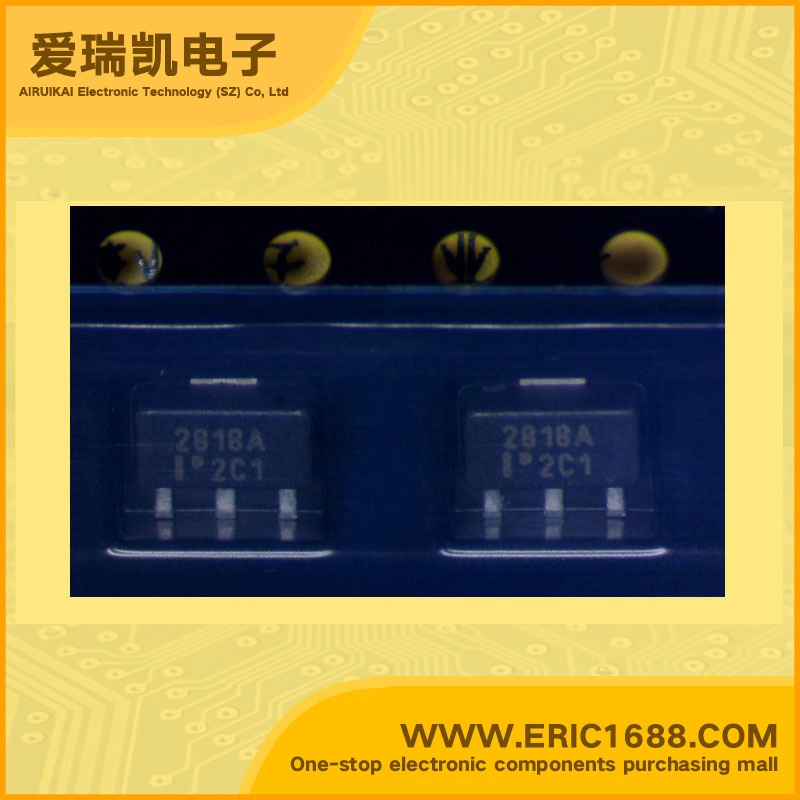

PJ2818ACY LDO Voltage Regulator 1.8V 1V SOT-89 marking 2818A Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 12V |
| 输出电压VOUT Voltage - Output | 1.8V |
| 输出电流Io Current - Output | 10mA |
| 最大压降VDO Voltage - Dropout | 1V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | 300mA CMOS LDO REGULATORS ；•Input Voltage range is up to 12V •Dropout Voltage :450mV at 300mA output current •Guaranteed 300mA output current • Highly Accurate : ±2%, 1.5V to 5V with 0.1V step • Low quiescent current : 100µA • Fast transient response • Good load regulation • Current limit and thermal shutdown protection |
| 描述与应用 | 300mA的CMOS LDO稳压器;•输入电压范围高达12V •漏失电压为450mV在300mA输出电流 •保证300mA输出电流 •高精度：±2％，1.5V至5V与0.1V步进 •低静态电流：100μA •快速瞬态响应 •良好的负载调节 •限流和热关断保护 |
