RN2962 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=50 R1=R2=10KΩ 200mW/0.2W SOT-363/US6/SC70-6 marking YYB switching inverting interface driver circuit

Model：RN2962

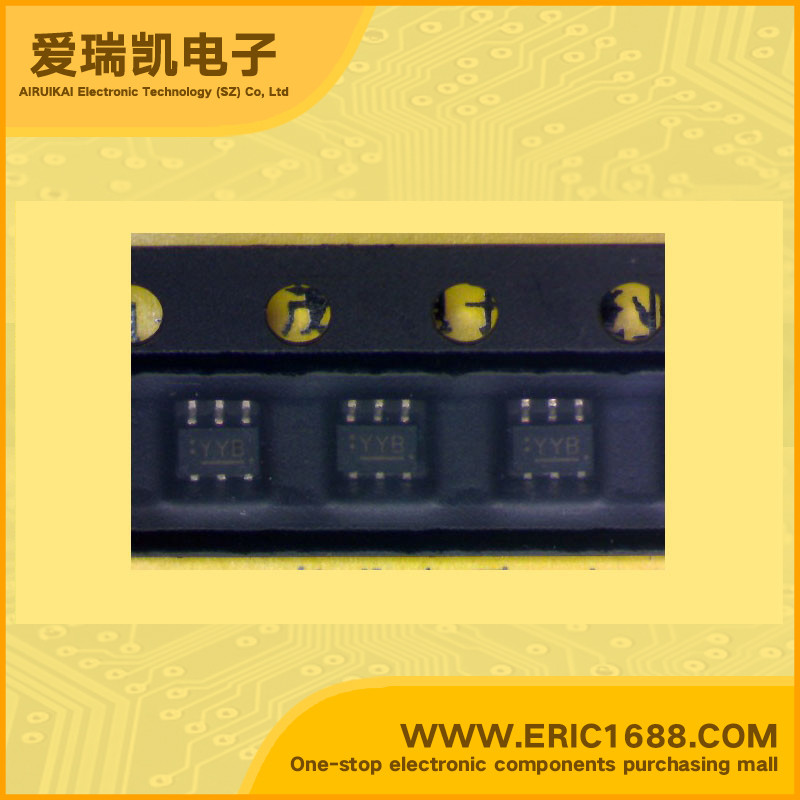

Mark / screen / code / typing：YYB
Manufacturer：
Date Code：05+ 05+
Package：SOT-363/US6/SC70-6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100MA/-0.1A
Input Resistance(R1)	10KΩ
Base-Emitter Resistance(R2)	10KΩ
Base-Emitter Input Resistance Ratio (R1/R2)	1
DC Current Gain(hFE)	50
Transtion Frequency(fT)	200MHZ
Power Dissipation （Pd）	0.2W
Description & Applications	TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications Including two devices in US6 (ultra super mini type with 6 leads) With built-in bias resistors Simplify circuit design Reduce a quantity of parts and manufacturing process
Technical Documentation Download	Read Online
