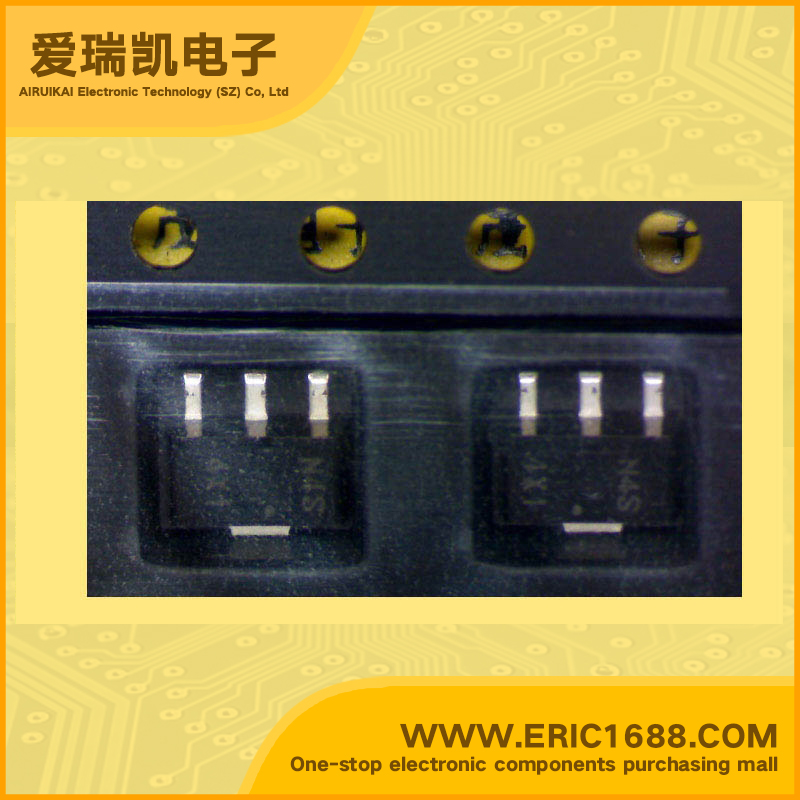

S-1131B33UA LDO Voltage Regulator 3.3V 250mV/0.25V SOT-89 marking N4S Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
0.3~7V
输出电压VOUT
Voltage - Output
3.3V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
250mV/0.25V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
500mW/0.5W
Description & ApplicationsHIGH RIPPLE-REJECTION AND LOW DROPOUT MIDDLE OUTPUT CURRENT CMOS VOLTAGE REGULATOR ;•Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V steps. • High-accuracy output voltage: ±1.0% • Low dropout voltage: 250 mV typ. (3.0 V output product, IOUT = 100 mA) • Low current consumption: During operation: 35 μA typ., 65 μA max. During shutdown: 0.1 μA typ., 1.0 μA max. • High peak current capability: 300 mA output is possible (at VIN ≥ VOUT(S) + 1.0 V) • Built-in ON/OFF circuit: Ensures long battery life. • High ripple rejection: 70 dB typ. (at 1.0 kHz) • Built-in overcurrent protector: Overcurrent of output transistor can be restricted.
描述与应用高纹波抑制率低压差 中输出电流CMOS电压稳压器;•输出电压:1.5 V至5.5 V,0.1 V步骤选择。 •高输出电压精度:±1.0% •低压差电压:250 mV典型。 (3.0 V输出产品,IOUT= 100 mA时) •低电流消耗:在操作过程中:35μA(典型值),最大为65μA。 休眠时:0.1μA(典型值),1.0μA最大值。 •高峰值电流能力:300 mA输出是可能的(在VIN≥VOUT(S)+1.0 V) •内置开/关控制电路,确保电池寿命长。 •高纹波抑制:70 dB(典型值)。 (1.0千赫) •内置过载电流保护:可以限制输出晶体管的过载电流。
