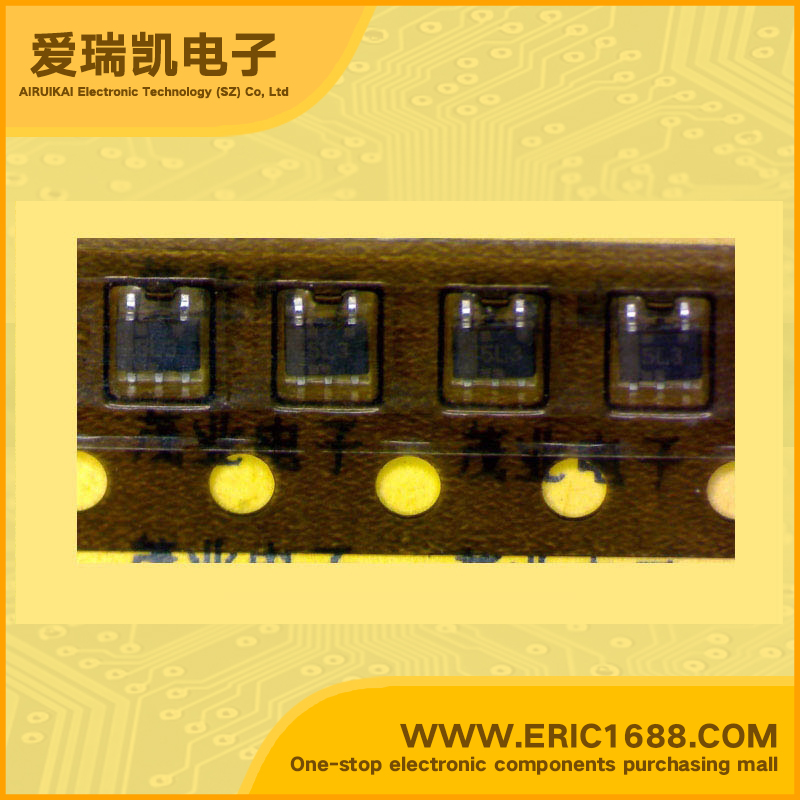

Integrated Circuit（IC） NOR gate S-75L02ANC SOT-353/SC-88A/SC70-5 marking 5L3
| 逻辑类型 Logic Type | 或非门 NOR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.0V~3.6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平 Logic Level - Low | 0.25V~0.9V |
| 高逻辑电平 Logic Level - High | 0.75V~2.1V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7ns @ 3V，25pF |
| Description & Applications | Features MINI LOGIC SERIES 2 INPUT NOR GATE Wide power supply range: 1 V to 3.6 V Low current consumption: 1.0 μA max (at 3.6 V, 25°C) Typical propagation delay: tPD = 7 ns (at 3 V) High noise immunity: VNIH = VNIL = 28% VCC min Power down protection: All pins Lead-free |
| 描述与应用 | 特性 迷你逻辑系列2输入或非门 宽电源电压范围：1 V到3.6 V 低消耗电流：1.0μA最大值（在3.6 V，25°C） 典型传播延迟：TPD =7纳秒（3 V） 高抗干扰性：VNIH= VNIL=28％VCC最小 掉电保护：所有引脚 无铅 |
