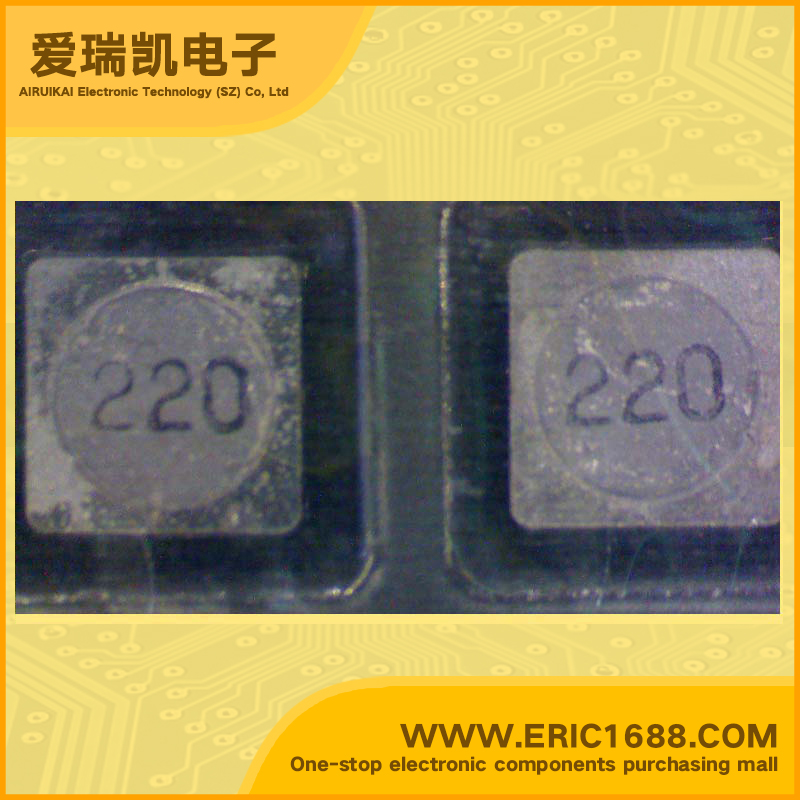

power conductor SH6028220YSB 22uH 6M-220

Hot selling goods

Product description
Q值
Q Value
电感值
Inductance
22uH
误差
Tolerance
±30%
额定电流
Current Rating
1400mA
饱和电流
Current - Saturation
1080mA
DC电阻DCR
DC Resistance (DCR)
0.115Ω/Ohm
Description & ApplicationsMATERIALS: a﹒Core :FerriteDR core b﹒Core:Ferrite RI core c﹒Wire :Enamelled copper wire ( Class H) d﹒Adhesive :Epoxy resin e﹒Terminal:Ag/Ni/Sn f﹒Remark:Products comply with RoHS' requirements GENERAL SPECIFICATION: c﹒Operating temp.:-40℃----+105℃ b﹒Storage temp.:-40℃----+125℃ a﹒Temp. rise :30℃max. d﹒Resistance to solder heat:260℃.10 secs.
描述与应用材料: a.Core:FerriteDR核心 b.Core:铁氧体RI核心 c.Wire:漆包铜线(H级) d.Adhesive:环氧树脂 e.Terminal:银/镍/锡 f.Remark:产品符合RoHS指令的要求 一般规格: c.Operating温度:-40℃ - +105℃ b.Storage温度:-40℃ - +125℃ a.Temp。上升:30℃最大。 d.Resistance焊热:260℃.10秒。
