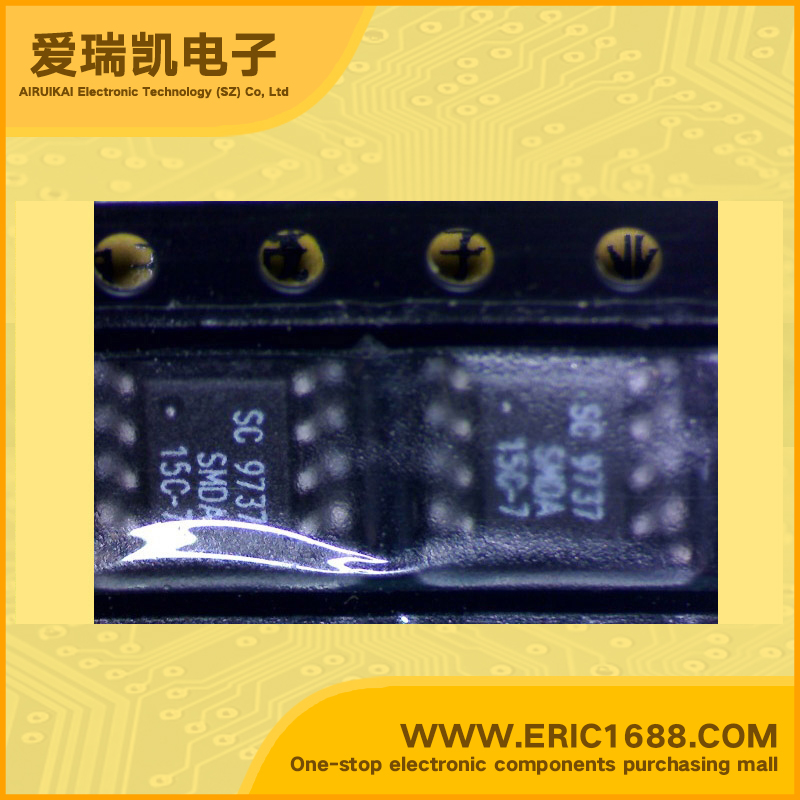

SMDA15C-7.TB TVS/ESD 15V 10A SO8 marking SMDA15C-7

Hot selling goods

Product description
极性
Polarization
双向 Bidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
15V
反向击穿电压VBR
Breakdown Voltage
16.7V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
300W
峰值脉冲电流IPPm
Peak Forward Surge Current
10A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFeatures •Bidirectional TVS Array for Protection of Seven Lines •Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20µs) •Small SO-8 surface mount package •Protects seven I/O lines •Working voltages: 5V, 12V, 15V and 24V •Low leakage current •Low operating and clamping voltages Applications •RS-232 and RS-422 Data Lines •Microprocessor Based Equipment •LAN/WAN Equipment •Notebooks, Desktops, and Servers •Instrumentation •Peripherals •Set Top Box •Serial and Parallel Ports
描述与应用特点 •双向TVS阵列保护七行 •瞬态保护的数据线 IEC61000-4-2(ESD)±15kV(空气),±8kV(接触) IEC61000-4-4(EFT)40A(5/50ns) IEC61000-4-5(闪电)12A(8/20μS) •小型SO-8表面贴装封装 •保护7个I / O线 •工作电压:5V,12V,15V​​和24V •低漏电流 •低工作电压和钳位 应用 •RS-232和RS-422数据线 •微机设备 •局域网/广域网设备 •笔记本电脑,台式机和服务器 •仪表 •外设 •机顶盒 •串行和并行端口
