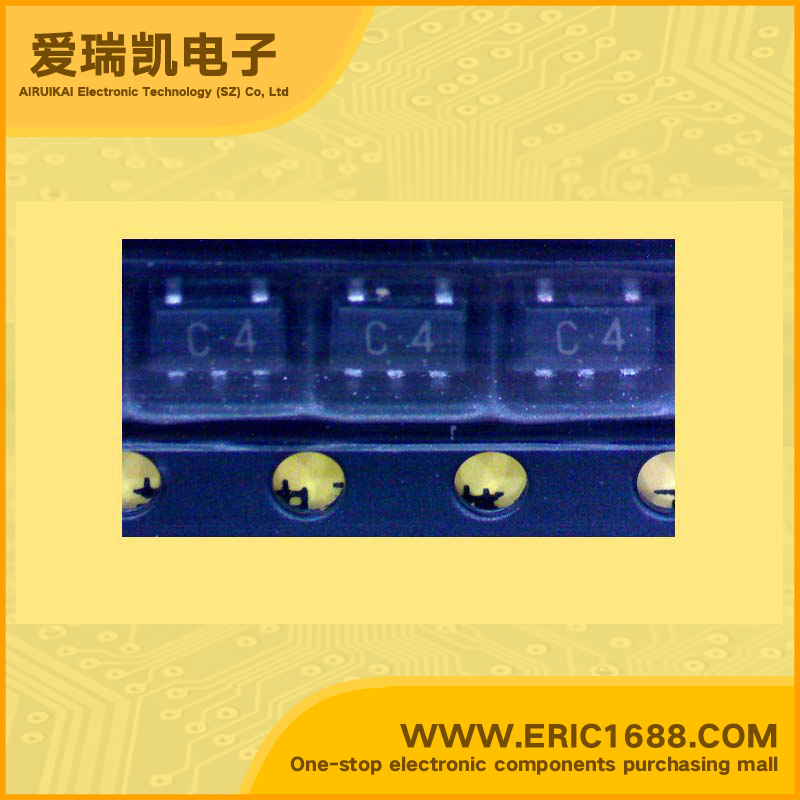

Integrated Circuit(IC) OR gate TC4S71F SOT-153/SMV marking C4

Hot selling goods

Product description
逻辑类型
Logic Type
或门 OR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
3v~18v
静态电流Iq
Current - Quiescent (Max)
1µA
输出高,低电平电流
Current - Output High, Low
-3.4mA,3.4mA
低逻辑电平
Logic Level - Low
1.5 V ~ 4 V
高逻辑电平
Logic Level - High
3.5v~11V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
80ns @ 15V,50pF
Description & Applications"The TC4S71F is 2-input positive logic NOR gates. Gate output with inverter buffer improve the input-output characteristics and even if the load capacitance increase,it can be stopped the change of propagation time"
描述与应用“TC4S71F 2输入正逻辑或非门。 门的输出与反相器缓冲区改进的输入 - 输出特性,即使负载电容的增加,它可以停止的传播时间的变化
