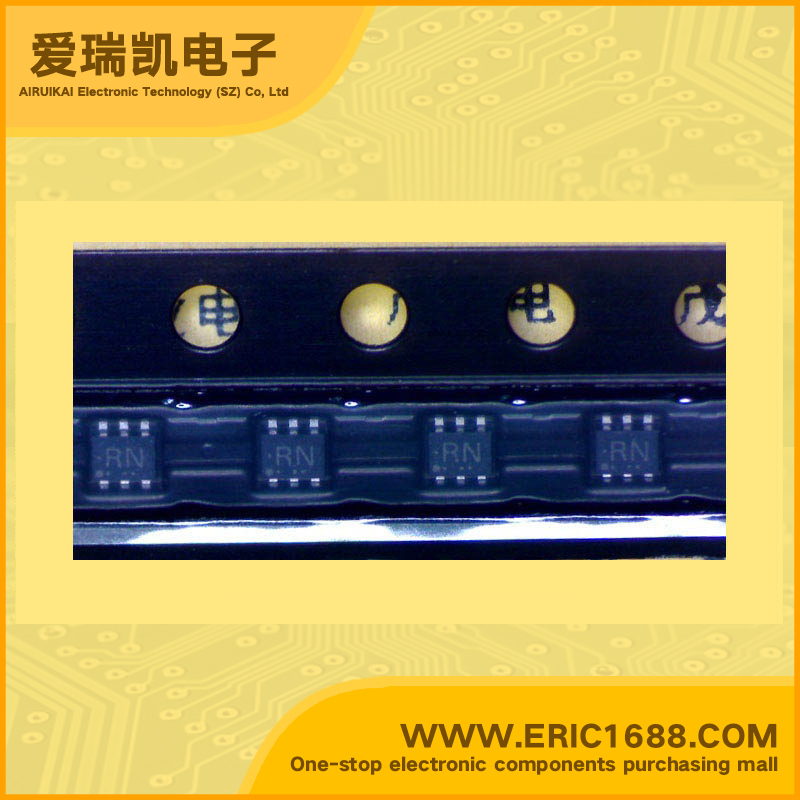

TC7PA19AFE Signal Switch, Multiplexer, Decoder SOT-563/ES6 marking RN
| 逻辑类型 Logic Type | 解码器 Decoder |
| 电路数 Number of Circuits | |
| 输入数 Number of Inputs | |
| 电源电压Vcc Voltage - Supply | |
| 静态电流Iq Current - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流 Current - Output High, Low | 1.4V~3.6 V |
| 低逻辑电平 Logic Level - Low | Operating voltage range: VCC = 1.4~3.6 V High-speed operation: tpd = 3.3 ns (max) at VCC = 3.0~3.6 V tpd = 3.9 ns (max) at VCC = 2.3~2.7 V tpd = 8.0 ns (max) at VCC = 1.65~1.95 V tpd = 10.0 ns (max) at VCC = 1.4~1.6 V High-level output current: IOH/IOL = ±24 mA (min) at VCC = 3.0 V IOH/IOL = ±18 mA (min) at VCC = 2.3 V IOH/IOL = ±4 mA (min) at VCC = 1.4 V 3.6 V tolerant inputs |
| 高逻辑电平 Logic Level - High | 工作电压范围：VCC= 1.4〜3.6 V 高速运行：TPD =3.3 ns（最大）在VCC=3.0〜3.6 V TPD =3.9ns（最大值）在VCC =2.3〜2.7 V TPD =8.0ns（最大值）在VCC =1.65〜1.95 V TPD =10.0 ns（最大）在VCC=1.4〜1.6 V 高电平输出电流： IOH/IOL=±24 mA（最小值）在VCC =3.0 V IOH/IOL=±18 mA（最小值）在VCC =2.3 V IOH/IOL=±4mA VCC= 1.4 V（最小值） 3.6V容限输入 |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
