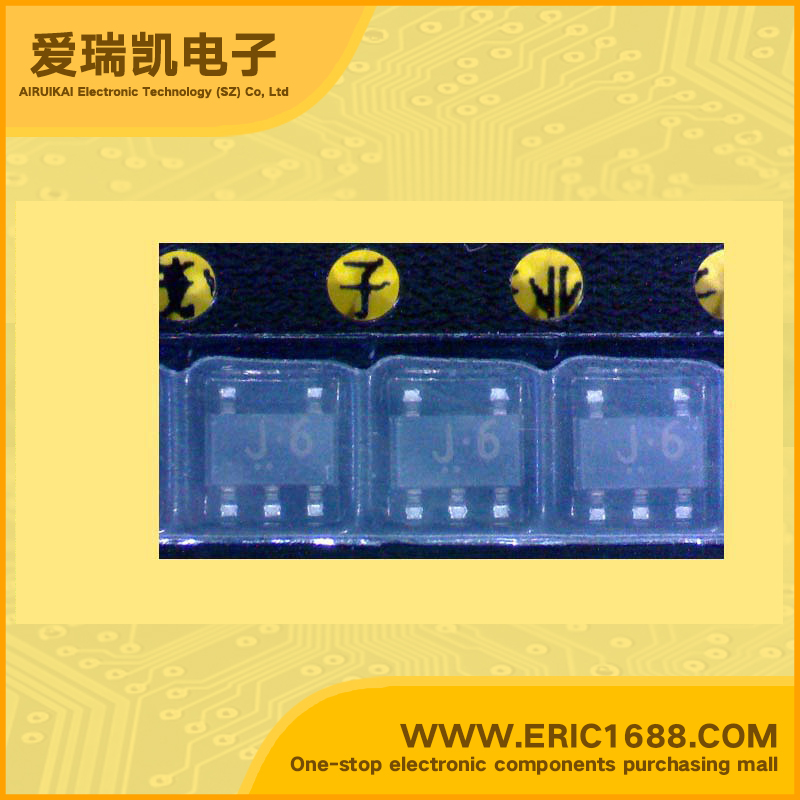

Integrated Circuit(IC) inverter TC7SZU04F SOT-153/SMV marking J6

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.8v~5.5v
静态电流Iq
Current - Quiescent (Max)
2µA
输出高,低电平电流
Current - Output High, Low
-16mA,1616mA
低逻辑电平
Logic Level - Low
0.15v~0.2v
高逻辑电平
Logic Level - High
0.8v~0.85v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
5nS @ 4.5v~5V,50pF
Description & ApplicationsInverter (Un-Buffer) ;High output drive: ±16 mA (min) at VCC = 4.5 V • Low quiescent power: ICC = 2 μA (max) at VCC = 5.5 V, Ta = 25°C • Operation voltage range: VCC (opr) = 1.8~5.5 V • 5.5-V tolerant input
描述与应用逆变器(非缓冲区);高输出驱动器:±16 mA(分钟)在VCC =4.5 V •低静态功耗:ICC= 2μA(最大值) 在VCC =5.5 V,大= 25°C •工作电压范围:VCC(OPR)  =1.8〜5.5 V •5.5-V宽容输入
