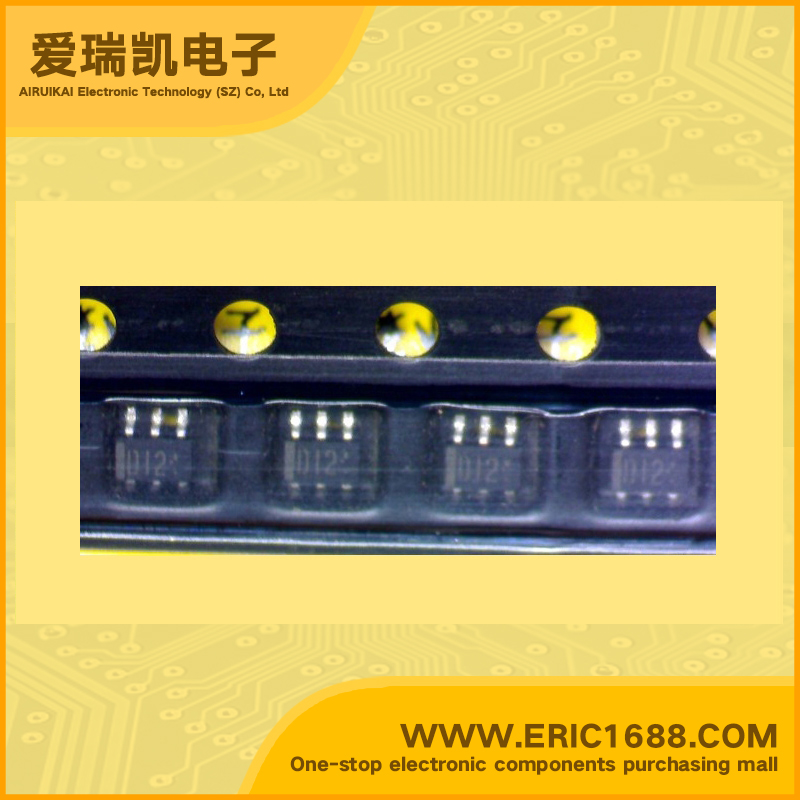

UMD12 NPN+PNP Complex Bipolar Digital Transistor 50V/-50V 100mA/-100mA 150mW/0.15W SOT-363/UMT6/SC-88/SC70-6 marking D12 switching inverting interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)50V/-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)50V/-50V
集电极连续输出电流IC Collector Current(IC)100mA/-100mA
Q1基极输入电阻R1 Input Resistance(R1)47KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio1
Q2基极输入电阻R1 Input Resistance(R1)47KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2)47KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio1
直流电流增益hFE DC Current Gain(hFE)
截止频率fT Transtion Frequency(fT)250MHz
耗散功率Pc Power Dissipation150mW/0.15W
Description & ApplicationsFeatures • Power management (dual digital transistors) • Both the DTA144E and DTC144E in a EMT or UMT package.
描述与应用特点 •电源管理(双数字晶体管) •DTA144E一个EMT或UMT包的DTC144E
