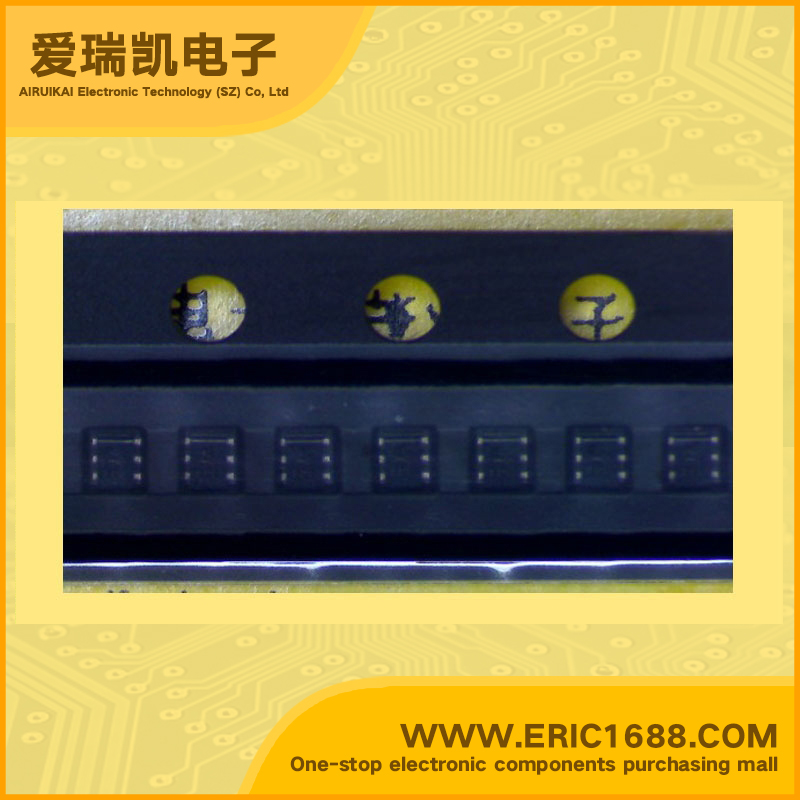

UPA862TD NPN+NPN Complex Bipolar Transistor 9V 30mA/100mA 110/112 SOT-763 marking Y switch and digital circuit application

Hot selling goods

Product description

V(BR) CBO

Collector-Base Voltage

 Q1/Q2=9V / 9V

V(BR) CEO

Collector-Emitter Voltage

 Q1/Q2=6V / 5.5V
Collector Current(IC)  Q1/Q2=30MA / 100MA
Transtion Frequency(fT)  Q1/Q2=12GHZ / 6.5GHZ
DC Current Gain(hFE)  Q1/Q2=75~150 / 100~145

VCE (sat)

Collector-Emitter Saturation Voltage


Power Dissipation (Pd)  210MW
Description & Applications  NPN SILICON RF TRANSISTOR
LOW VOLTAGE, LOW CURRENT OPERATION
 TWO DIFFERENT DIE TYPES:
Q1 - Ideal buffer amplifier transistor
Q2 - Ideal oscillator transistor
