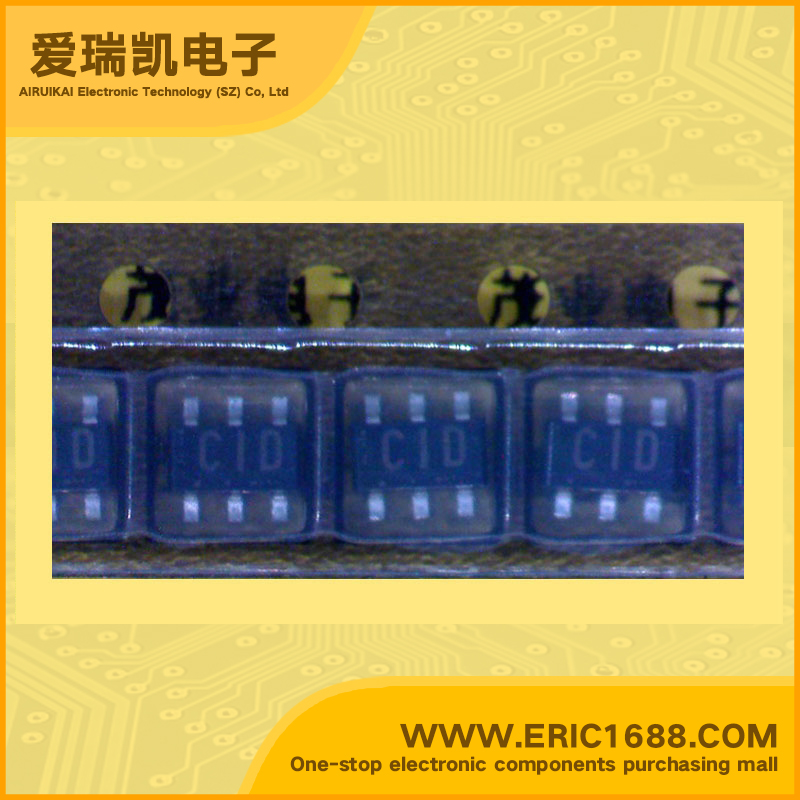

RF amplifier UPC2708T-E3 SOT-163 marking C1D

Hot selling goods

Product description
频率
Frequency
2.7GHz~2.9GHz
P1dB7.5dBm
增益
Gain
13dB~18.5dB
噪声系数
Noise Figure
6.5dB~8dB
RF 类型
RF Type
手机,DBS,PCS Cellular, DBS, PCS
电源电压
Voltage - Supply
4.5V~5.5V
电源电流
Current - Supply
20mA~33mA
测试频率
Test Frequency
1GHz
Description & ApplicationsFEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • 5 V, SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER • High-density surface mounting : 6-pin super minimold package • Wideband response : fu = 2.9 GHz TYP. @ 3 dB bandwidth • Medium output power : PO(sat) = +10 dBm TYP. @ f = 1 GHz with external inductor • Supply voltage : VCC = 4.5 to 5.5 V • Power gain : GP = 15 dB TYP. @ f = 1 GHz • Port impedance : input/output 50 Ω APPLICATION • 1st IF amplifiers in BS/CS converters, etc. • 1st IF stage buffer in BS/CS tuners, etc.
描述与应用特点 •双极模拟集成电路 •5 V,SUPER MINIMOLD硅MMIC中等输出功率放大器 •高密度表面安装:6-pin超级minimold包装 •宽带响应:FU =2.9 GHz的TYP。 @3 dB带宽 •中等输出功率:PO(星期六)=+10 dBm的典型值。 @ F =1 GHz的外部电感器 •电源电压:VCC=4.5到5.5 V •功率增益:GP=15 dB典型值。 @频率=1 GHz的 •输入/输出端口阻抗:50欧姆 应用 •第一中频BS/ CS转换器,放大器等。 •第一中频级缓冲BS/ CS调谐器等
