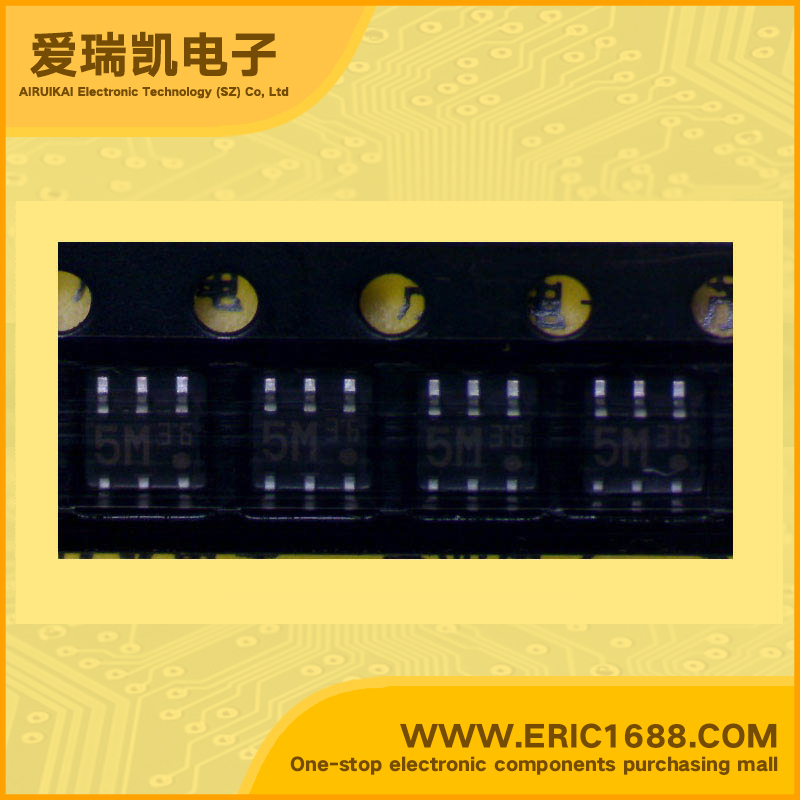

XN5531 NPN+NPN Complex Bipolar Transistor 15V 50mA 200 SOT-163/SC-74 marking 5M switch and digital circuit application

Model：XN5531
Mark / screen / code / typing：5M
Manufacturer：
Date Code：03+
Package：SOT-163/SC-74
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	15V
V(BR) CEO Collector-Emitter Voltage	10V
Collector Current(IC)	50MA
Transtion Frequency(fT)	2.5GHZ
DC Current Gain(hFE)	75~400
VCE (sat) Collector-Emitter Saturation Voltage	0.5V
Power Dissipation （Pd）	200MW
Description & Applications	Silicon NPN epitaxial planer transistor For high frequency oscillation and mixing 2SC3130 × 2
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
XN5601 PNP+NPN Complex Bipolar Transistor -60V/60V -100mA/100mA 160~460 SOT-163/SC-74 marking 4N switch and digital circuit application	XN5601 Mark：4N Package：SOT-163/SC-74	-	Batch number：04+ 00+	3150 Min Order:10
XN6111 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=R2=10KΩ HEF=35 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 6Z switching inverting interface driver circuit	XN6111 Mark：6Z Package：SOT-163/SC-74/SOT23-6	-	Batch number：05+ 05+	4000 Min Order:10
XN6112 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=R2=22KΩ HEF=60 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 6V switching inverting interface driver circuit	XN6112 Mark：6V Package：SOT-163/SC-74/SOT23-6	-	Batch number：00+	300 Min Order:10
XN6113 PNP+PNP Complex Bipolar Digital Transistor -50V -0.1A R1=R2=47KΩ HEF=80 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 6W switching inverting interface driver circuit	XN6113 Mark：6W Package：SOT-163/SC-74/SOT23-6	-	Batch number：00+	7000 Min Order:10
XN6211 NPN+NPN Complex Bipolar Digital Transistor 50V 0.1A R1=R2=10KΩ HEF=35 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 7Z switching inverting interface driver circuit	XN6211 Mark：7Z Package：SOT-163/SC-74/SOT23-6	-	Batch number：05+ 05+	3000 Min Order:10
XN6212 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA R1=R2=22KΩ HEF=60 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 8V switching inverting interface driver circuit	XN6212 Mark：8V Package：SOT-163/SC-74/SOT23-6	-	Batch number：05+ 05+	3550 Min Order:10
XN6216 NPN+NPN Complex Bipolar Digital Transistor 50V 0.1A R1=4.7KΩ HEF=160~460 300mW/0.3W SOT-163/SC-74/SOT23-6 marking 8Y switching inverting interface driver circuit	XN6216 Mark：8Y Package：SOT-163/SC-74/SOT23-6	-	Batch number：05+	6000 Min Order:10
