XP3312 NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA 60 SOT-353/SC-88A marking 4P switch and digital circuit application

Model：XP3312

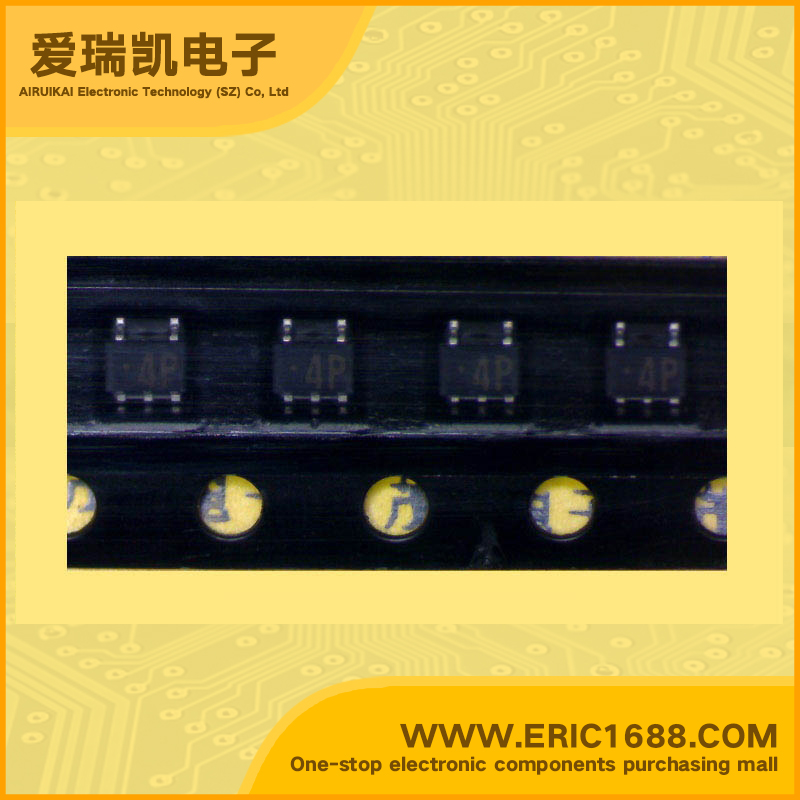

Mark / screen / code / typing：4P
Manufacturer：
Date Code：05NOPB3RM+15300
Package：SOT-353/SC-88A
Standard Package：3000
Min Order：10

Hot selling goods

Product description

Q1 Collector-Base Voltage(VCBO)	50V
Q1Collector-Emitter Voltage(VCEO)	50V
Q1 Collector Current(IC)	100MA
Q2 Collector-Base Voltage(VCBO)	-50V
Q2Collector-Emitter Voltage(VCEO)	-50V
Q2Collector Current(IC)	-100MA
Q1 Input Resistance(R1)	22KΩ
Q1Base-Emitter Resistance(R2)	22KΩ
Q1(R1/R2) Q1 Resistance Ratio	1
Q2 Input Resistance(R1)	22KΩ
Q2Base-Emitter Resistance(R2)	22KΩ
Q2(R1/R2) Q2 Resistance Ratio	1
DC Current Gain(hFE) Q1/Q2	60 / 60
Transtion Frequency(fT) Q1/Q2	150MHZ / 80MHZ
Power Dissipation	150MW/0.15W
Description & Applications	Silicon NPN epitaxial planer transistor (Tr1) Silicon PNP epitaxial planer transistor (Tr2) For switching/digital circuits UN1212+UN1112

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
XP0338300L(XP3383) NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA 80/30 SOT-353/SC-88A marking DV switch and digital circuit application	XP0338300L(XP3383) Mark：DV Package：SOT-353/SC-88A	-	Batch number：04NOPB1800 04+ROHS1800	17300 Min Order:10
XP0338900L(XP3389) NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA 35/20 SOT-353/SC-88A marking DX switch and digital circuit application	XP0338900L(XP3389) Mark：DX Package：SOT-353/SC-88A	-	Batch number：05+ 00+	7500 Min Order:10
XP0411500L PNP+PNP Complex Bipolar Transistor -50V -100mA R1=10KΩ HEF=160~460 SOT-353/SC-88A marking 6T switch and digital circuit application	XP0411500L Mark：6T Package：SOT-353/SC-88A	-	Batch number：05+	0 Min Order:10
XP0411MOOL PNP+PNP Complex Bipolar Transistor -50V -100mA R1=2.2KΩ R2=47KΩ HEF=80 SOT-363/SC-88 marking EA switch and digital circuit application	XP0411MOOL Mark：EA Package：SOT-363/SC-88	-	Batch number：02+	30000 Min Order:10
XP04213002HT NPN+NPN Complex Bipolar Transistor 50V 100mA R1=R2=47KΩ HEF=80 SOT-363/SC-88 marking 8S switch and digital circuit application	XP04213002HT Mark：8S Package：SOT-363/SC-88	-	Batch number：05+	500 Min Order:10
XP0431N00L NPN+PNP Complex Bipolar Transistor 50V/-50V 100mA/-100mA 80 SOT-363/SC-88 marking HC switch and digital circuit application	XP0431N00L Mark：HC Package：SOT-363/SC-88	-	Batch number：05+1RNOPB 05+ROHS3KM	6000 Min Order:10
XP4878 Complex FET 50V 100mA/0.1A SOT-363/SC70-6 marking 7Y 2.5V drive	XP4878 Mark：7Y Package：SOT-363/SC70-6	-	Batch number：03+NOPB	0 Min Order:10
