XP1110 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=47KΩ HEF=160~460 150mW/0.15W SOT-353/SC-88A/SC70-5 marking AD switching inverting interface driver circuit|Welcome to Eric Online Store - SHEN ZHEN ERIC ELECTRONICS TECHNOLOGY LIMITED

Location：Home > Stock Inventory > Product Details

XP1110 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=47KΩ HEF=160~460 150mW/0.15W SOT-353/SC-88A/SC70-5 marking AD switching inverting interface driver circuit

Model：XP1110

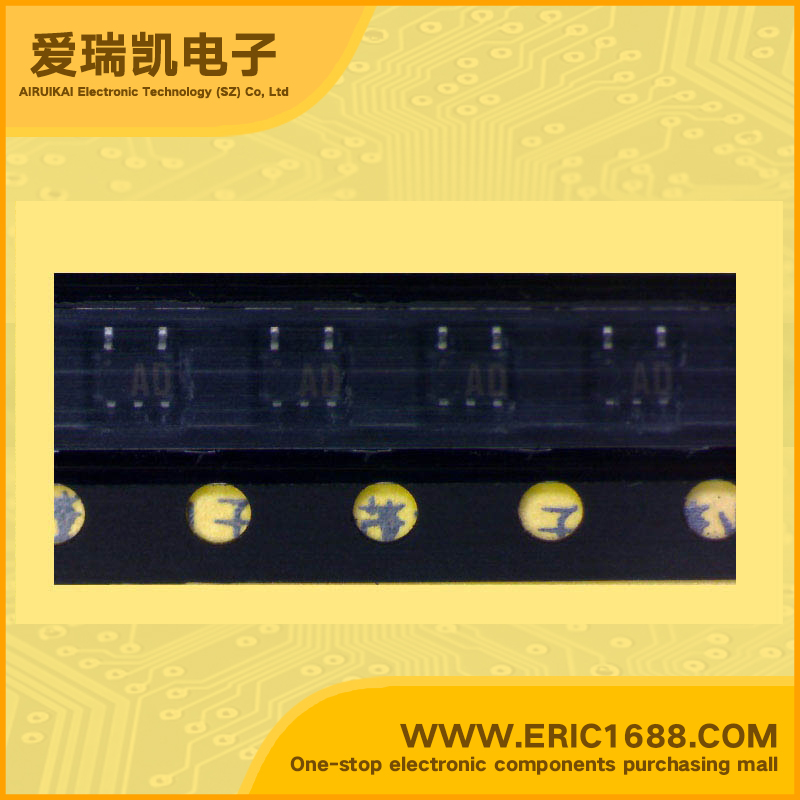

Mark / screen / code / typing：AD
Manufacturer：
Date Code：05+NOPB3KM
Package：SOT-353/SC-88A/SC70-5
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100MA
Input Resistance(R1)	47KΩ
Base-Emitter Resistance(R2)
Base-Emitter Input Resistance Ratio (R1/R2)
DC Current Gain(hFE)	160~460
Transtion Frequency(fT)	80mhz
Power Dissipation （Pd）	150MW
Description & Applications	Silicon PNP epitaxial planer transistor For switching/digital circuits UNR1110(UN1110) × 2
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
XP1111 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=R2=10KΩ HEF=35 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 9S switching inverting interface driver circuit	XP1111 Mark：9S Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+ 05+	0 Min Order:10
XP1112 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=R2=22KΩ HEF=60 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 7K switching inverting interface driver circuit	XP1112 Mark：7K Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+	0 Min Order:10
XP1113 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=R2=47KΩ HEF=80 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 7L switching inverting interface driver circuit	XP1113 Mark：7L Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+ 01+	8000 Min Order:10
XP1115 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=10KΩ HEF=160~460 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 7M switching inverting interface driver circuit	XP1115 Mark：7M Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+ 05+	0 Min Order:10
XP1116 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=4.7KΩ HEF=160~460 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 7N switching inverting interface driver circuit	XP1116 Mark：7N Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+	0 Min Order:10
XP1119 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=1KΩ R2=10KΩ HEF=30 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 7P switching inverting interface driver circuit	XP1119 Mark：7P Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+ 05+	8000 Min Order:10
XP111F PNP+PNP Complex Bipolar Digital Transistor -50V -100mA R1=4.7KΩ R2=10KΩ HEF=30 150mW/0.15W SOT-353/SC-88A/SC70-5 marking 7O switching inverting interface driver circuit	XP111F Mark：7O Package：SOT-353/SC-88A/SC70-5	-	Batch number：05+ 05+	15000 Min Order:10
