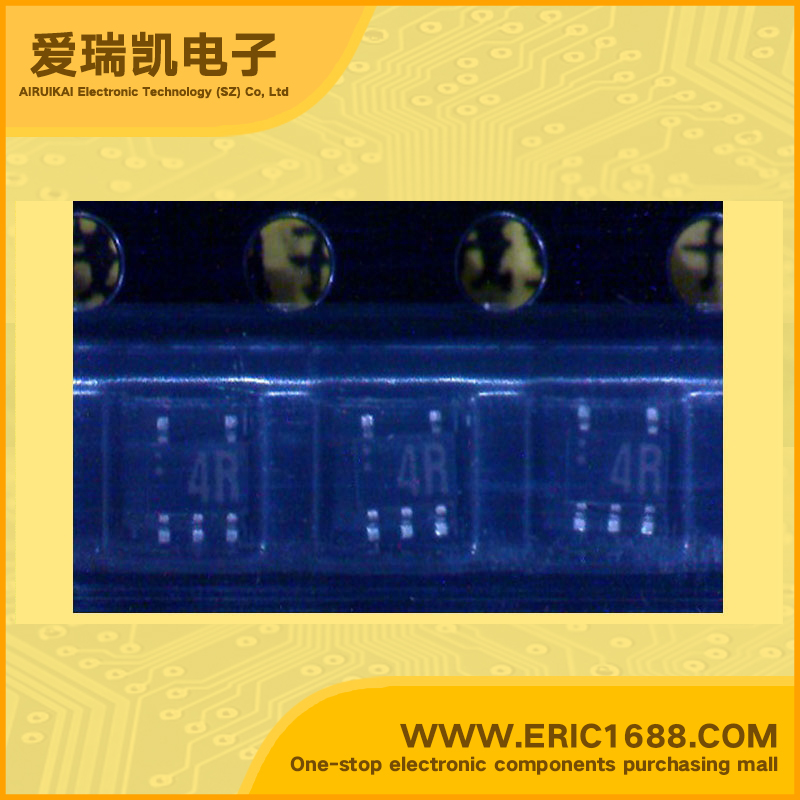

XP1C301 PNP+NPN Complex Bipolar Transistor -60V/60V -100mA/100mA 160~460 SOT-353/SC-88A marking 4R switch and digital circuit application

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) -60V/60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) -50V/50V
集电极连续输出电流IC Collector Current(IC) -100mA/100mA
截止频率fT Transtion Frequency(fT) 80MHz/150MHz
直流电流增益hFE DC Current Gain(hFE) 160~460/160~460
管压降VCE(sat) Collector-Emitter Saturation Voltage -300mA/100mA
耗散功率Pc Power Dissipation 150mW
Description & Applications Features • Silicon PNP epitaxial planer transistor (Tr1) Silicon NPN epitaxial planer transistor (Tr2) • Two elements incorporated into one package(Tr1 base is connected to Tr2 emitter.) • Reduction of the mounting area and assembly cost by one half. Applications • For general amplification 2SB709A+2SD601A
描述与应用 特点 •硅PNP外延刨床晶体管的(TR1)硅NPN外延刨床晶体管的(TR2) •两个要素纳入一包装(TR1基地TR2发射器连接到)。 •减少安装面积和汇编一半的费用。 应用 •对于一般的放大 2SB709A+2SD601A
