XP4501 NPN+NPN Complex Bipolar Transistor 60V 100mA HEF=160~460 SOT-363/SC-88 marking 5H switch and digital circuit application

Model：XP4501

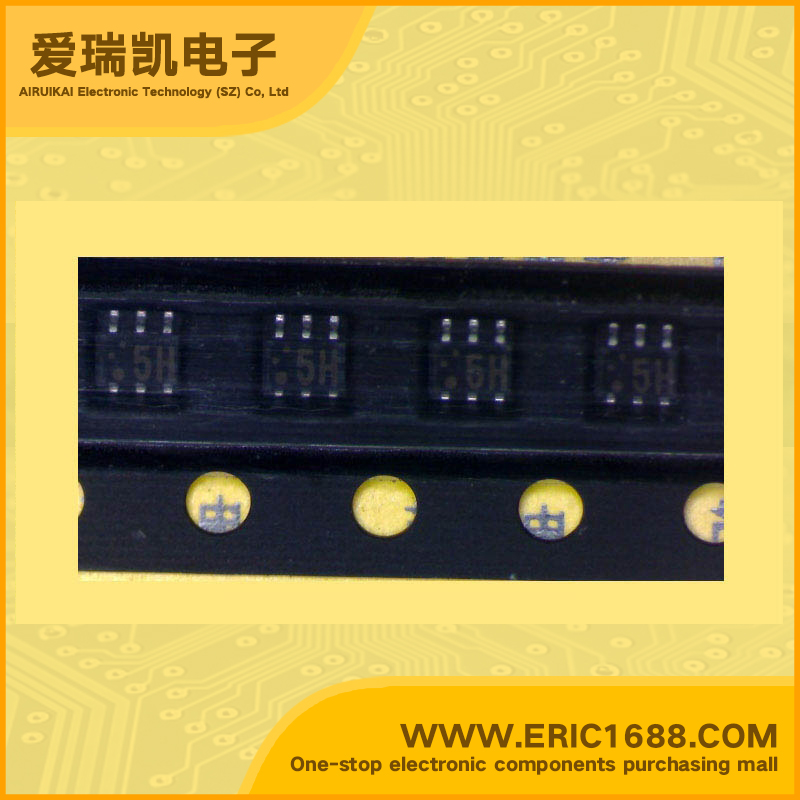

Mark / screen / code / typing：5H
Manufacturer：
Date Code：8R/NOPB 06+ROHS30300
Package：SOT-363/SC-88
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	60V
V(BR) CEO Collector-Emitter Voltage	50V
Collector Current(IC)	100MA
Transtion Frequency(fT)	150MHZ
DC Current Gain(hFE)	160~460
VCE (sat) Collector-Emitter Saturation Voltage	0.3V
Power Dissipation （Pd）	150MW/0.15W
Description & Applications	Silicon NPN epitaxial planer transistor For general amplification ■ Features ● Two elements incorporated into one package. ● Reduction of the mounting area and assembly cost by one half. 2SD601A × 2
Technical Documentation Download	Read Online

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
XP4601 NPN+PNP Complex Bipolar Transistor 60V/-60V 100mA/-100mA 160~460 SOT-363/SC-88 marking 5C switch and digital circuit application	XP4601 Mark：5C Package：SOT-363/SC-88	-	Batch number：051RNOPB	0 Min Order:10
XP4601 NPN+PNP Complex Bipolar Transistor 60V/-60V 100mA/-100mA 160~460 SOT-363/SC-88 marking 5C switch and digital circuit application	XP04601T0L Mark：5C Package：SOT-363/SC-88	-	Batch number：05+	428 Min Order:10
XP4654 NPN+PNP Complex Bipolar Transistor 40V/-15V 100mA/-50mA 60~320/50~150 SOT-363/SC-88 marking ED switch and digital circuit application	XP4654 Mark：ED Package：SOT-363/SC-88	-	Batch number：05+	2500 Min Order:10
XP5501 NPN+NPN Complex Bipolar Transistor 60V 100mA HEF=160~460 SOT-363/SC-88 marking 5L switch and digital circuit application	XP5501 Mark：5L Package：SOT-363/SC-88	-	Batch number：02+	3500 Min Order:10
XP5601 PNP+NPN Complex Bipolar Transistor -60V/60V -100mA/100mA HEF=160~460 SOT-363/SC-88 marking 4N switch and digital circuit application	XP5601 Mark：4N Package：SOT-363/SC-88	-	Batch number：02+ 04+	0 Min Order:10
XP6114 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=80 150mW/0.15W SOT-363/SC-88/SC70-6 marking CK switching inverting interface driver circuit	XP6114 Mark：CK Package：SOT-363/SC-88/SC70-6	-	Batch number：05+ 05+	12000 Min Order:10
XP611FH PNP+PNP Complex Bipolar Digital Transistor -50V -100mA 30 150mW/0.15W SOT-363/SC-88/SC70-6 marking 4S switching inverting interface driver circuit	XP611FH Mark：4S Package：SOT-363/SC-88/SC70-6	-	Batch number：05+ 05+	12000 Min Order:10
