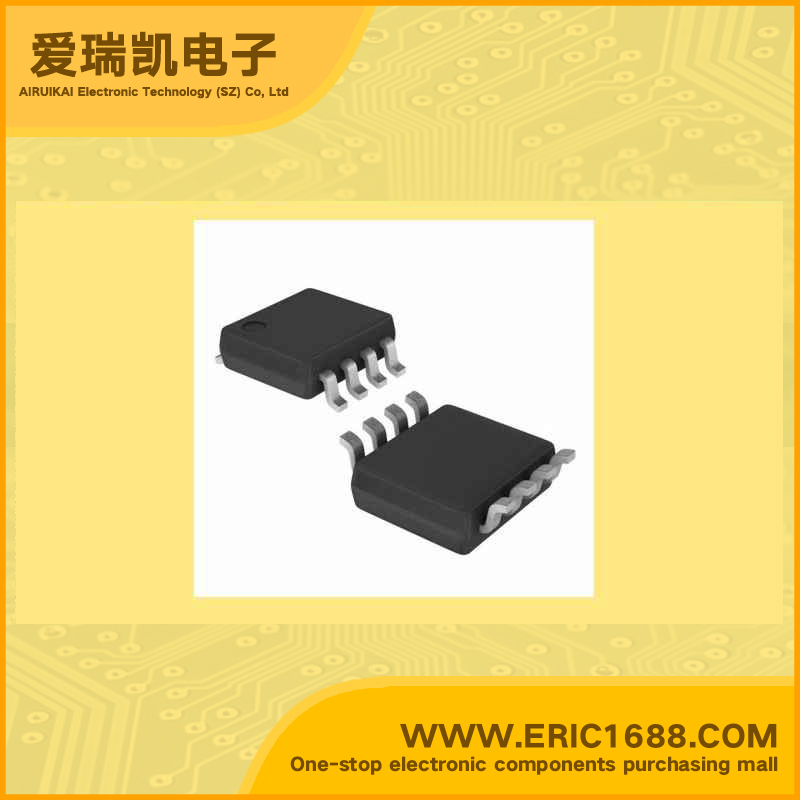

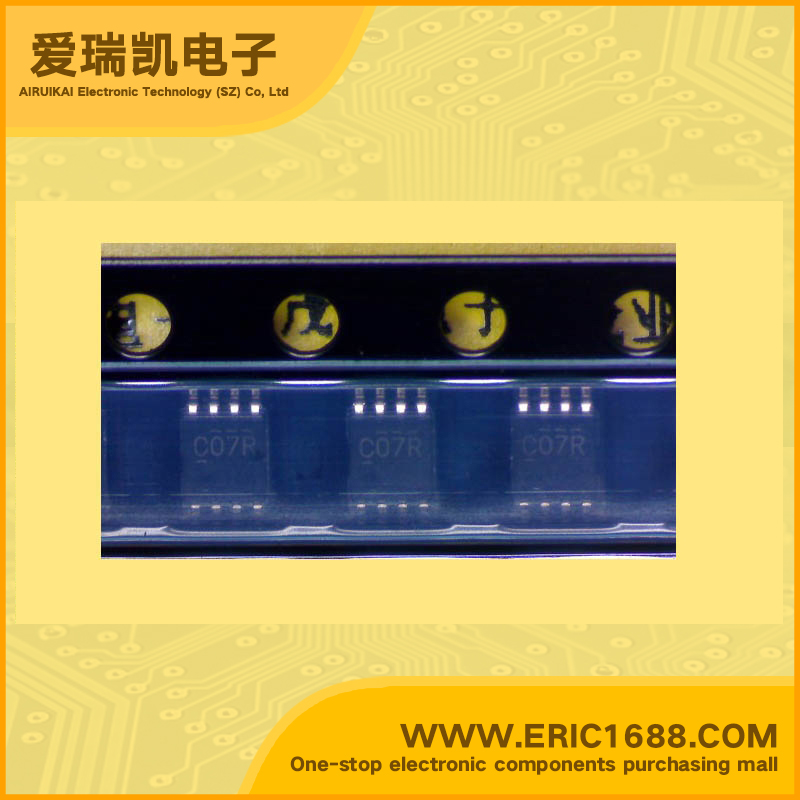

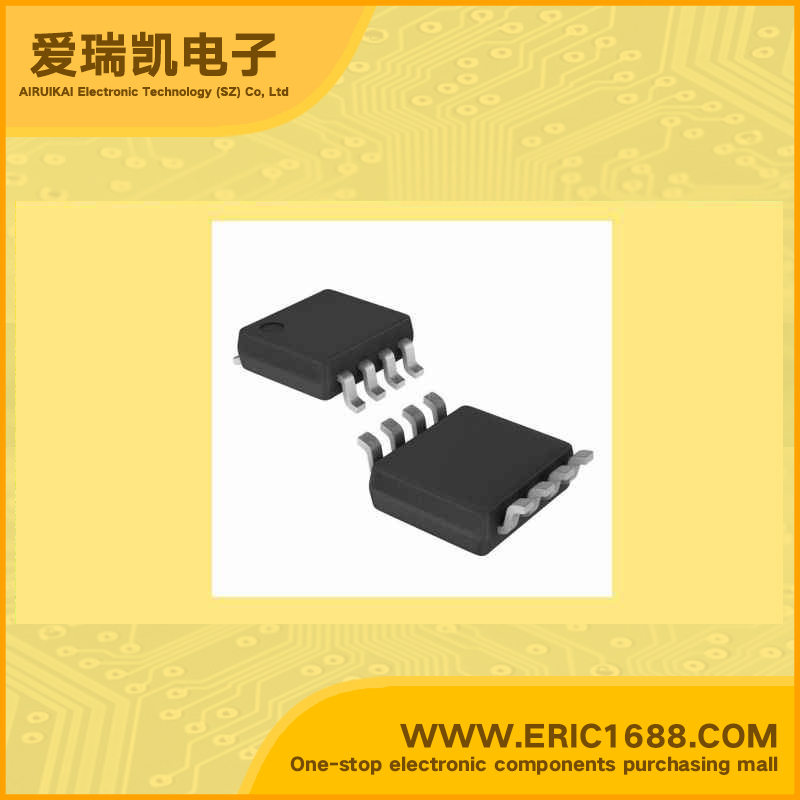

Logic circuit Buffer/Line Driver SN74LVC3G07DCUR VSSOP8/US8 marking C07R

Hot selling goods

Product description
逻辑类型
Logic Type
非反相并带开漏极 Non-Inverting with Open Drain
电路数
Number of Circuits
3
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.65 V ~ 5.5 V
静态电流Iq
Current - Quiescent (Max)
—,32mA
输出高,低电平电流
Current - Output High, Low
This triple buffer/driver is WITH OPEN-DRAIN OUTPUTS designed for 1.65-V to 5.5-V VCC operation. The output of the SN74LVC3G07 is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The Ioff circuitry disables the outputs,preventing damaging current backflow through the device when it is powered down.
低逻辑电平
Logic Level - Low
这三重缓冲/驱动器开漏输出设计用于1.65-V到5.5 V的VCC操作。 SN74LVC3G07的输出开漏输出,可以连接到其他的开路漏极输出,实现有源低线或或有源高有线和功能。 IOFF电路禁止输出,防止损坏电流回流通过设备时,断电
高逻辑电平
Logic Level - High
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
Description & Applications
描述与应用
