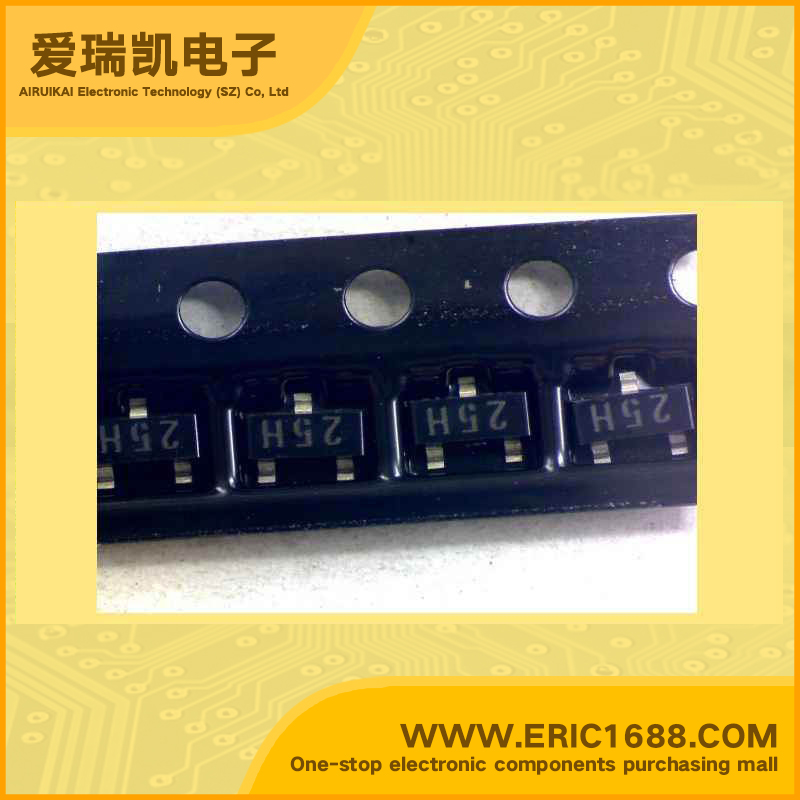

ZRC250F02TA Voltage Reference Power Management IC 2.5V SOT-23 marking 25H Test equipment

Hot selling goods

Product description
参考类型
Reference Type
旁路,精度 Shunt, Precision
输出电压Vo
Voltage - Output
2.5V
误差
Tolerance
±1%
温度系数
Temperature Coefficient
90ppm/°C
输入电压
Voltage - Input
阴极电流
Current - Cathode
20µA
输出电流IOUT
Current - Output
5mA
Description & ApplicationsFEATURES • PRECISION 2.5 VOLT LOW KNEE CURRENT VOLTAGE REFERENCE • Small outline SOT23 package • No stabilizing capacitor required • Low knee current, 15μA typical • Typical TC 30ppm/°C • Typical slope resistance 0.4Ω • ± 2 and 1% tolerance • Industrial temperature range • Operating current 20μA to 5mA • Transient response, stable in less than 10μs • Green molding compound (No Br, Sb) APPLICATIONS • Battery powered and portable equipment. • Instrumentation. • Test equipment.
描述与应用特点 •精密2.5伏低膝关节电流电压参考 •小外形SOT23封装 •无稳定电容 •低膝盖电流,15μA典型 •典型的TC为30ppm/°C •典型斜率电阻0.4Ω •±2和1%的容差。 •工业温度范围 •工作电流20μA到5mA •瞬态响应,稳定在不超过10μs •绿色模塑化合物(无溴,锑) 应用 •电池供电的便携式设备。 •仪表。 •测试设备。
