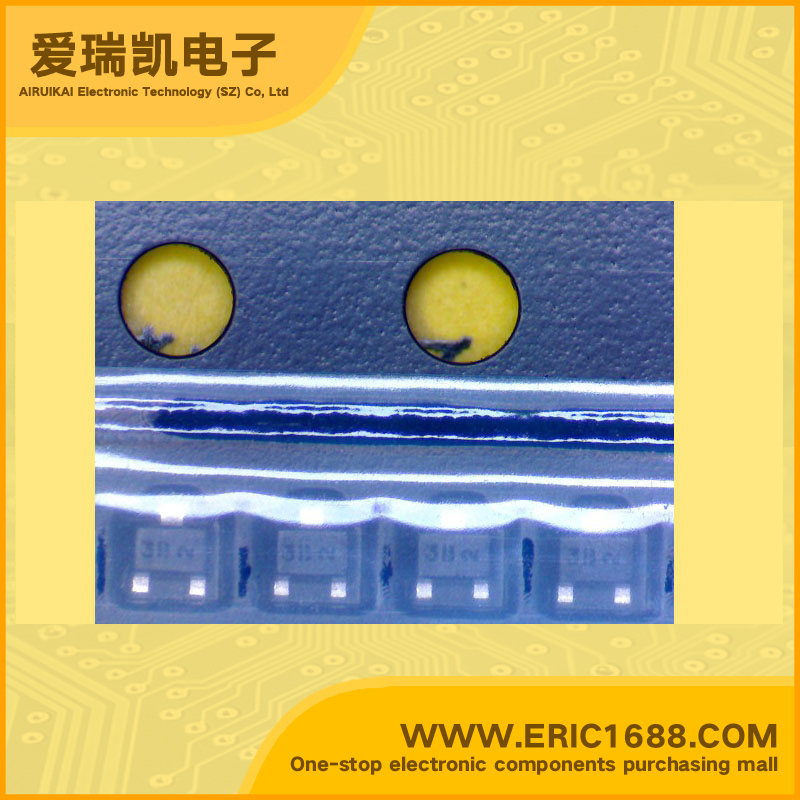

BC856BM3T5G PNP transistors(BJT) -80V -100mA/-0.1A 100MHz 220~475 -300mV/-0.3V sot-723 marking 3B general amplifier
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | −80V |
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −65V |
集电极连续输出电流IC Collector Current(IC) | −100mA/-0.1A |
截止频率fT Transtion Frequency(fT) | 100MHz |
直流电流增益hFE DC Current Gain(hFE) | 220~475 |
管压降VCE(sat) Collector-Emitter SaturationVoltage | -300mV/-0.3V |
耗散功率Pc PoWer Dissipation | 265mW/0.265W |
Description & Applications | General Purpose Transistor PNP Silicon This transistor is designed for general purpose amplifier applications. It is housed in the SOT−723 which is designed for low power surface mount applications. • This is a Pb−Free Device |
描述与应用 | 通用晶体管 PNP硅 这种晶体管是专为通用放大器应用。它被安置在SOT-723是专为低功率表面贴装应用。 •这是一个Pb-Free设备 |
