KRA760U PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=120 R1=4.7KΩ 200mW/0.2W SOT-363/US6/SC70-6 marking PK switching inverting interface driver circuit

Model：KRA760U

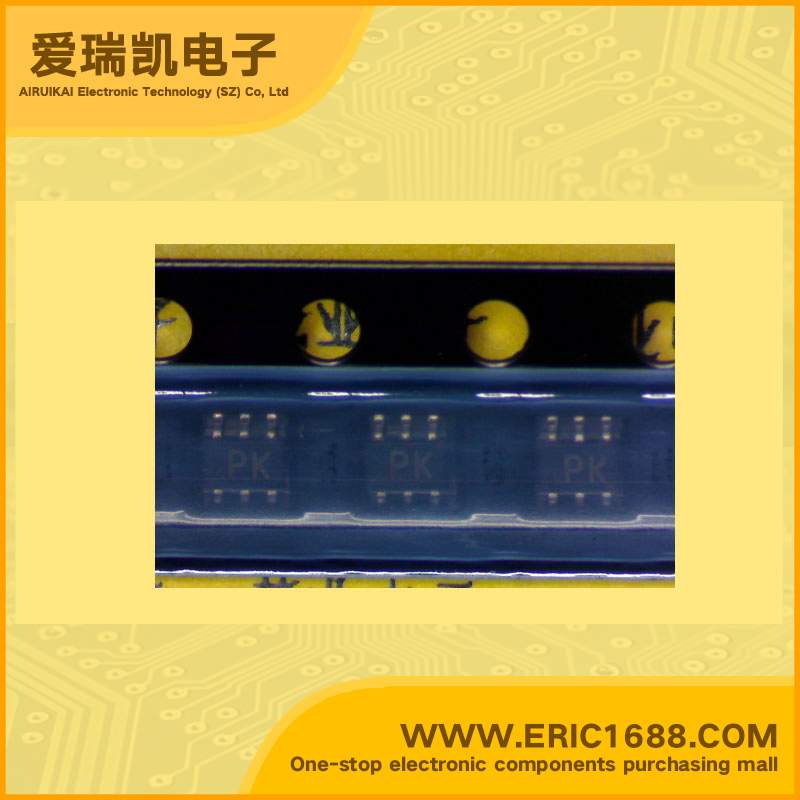

Mark / screen / code / typing：PK
Manufacturer：
Date Code：05+NOPB3KM
Package：SOT-363/US6/SC70-6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR) CBO Collector-Base Voltage	-50V
V(BR) CEO Collector-Emitter Voltage	-50V
Collector Current(IC)	-100MA
Input Resistance(R1)	4.7KΩ
Base-Emitter Resistance(R2)
Base-Emitter Input Resistance Ratio (R1/R2)
DC Current Gain(hFE)	120
Transtion Frequency(fT)	250MHZ
Power Dissipation （Pd）	0.2W
Description & Applications	SWITCHING APPLICATION. INTERFACE CIRCUIT AND DRIVER CIRCUIT APPLICATION. FEATURES With Built-in Bias Resistors. Simplify Circuit Design. Reduce a Quantity of Parts and Manufacturing Process. High Packing Density.
Technical Documentation Download	Read Online
