EMC3DXV5T5 NPN+PNP Complex Bipolar Digital Transistor -50V/50V -100mA/100mA 60 500mW/0.5W SOT-563 marking U3K switching inverting interface driver circuit

Model：EMC3DXV5T5

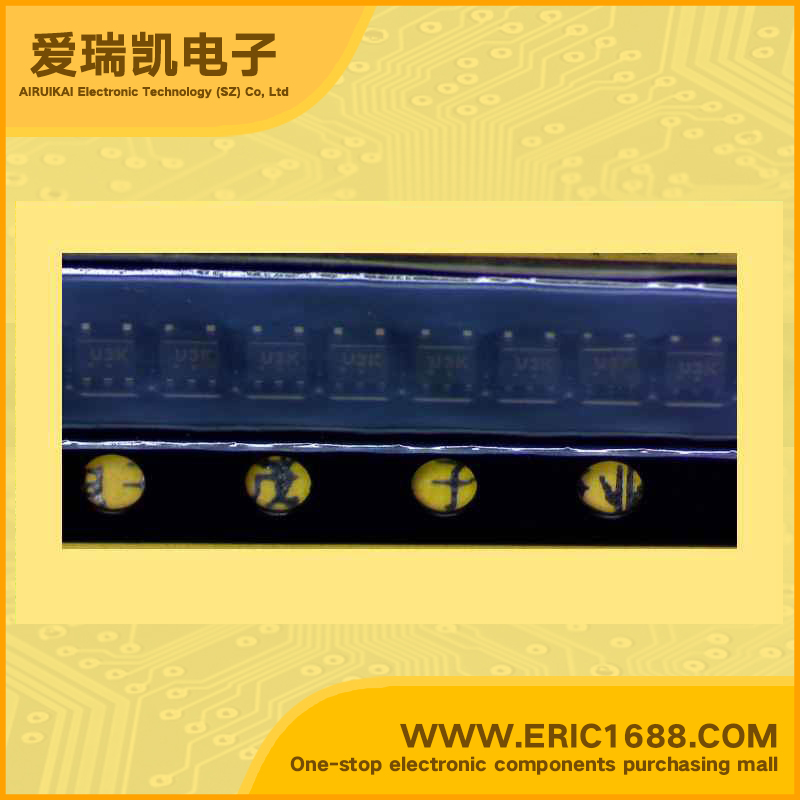

Mark / screen / code / typing：U3K
Manufacturer：
Date Code：04+NOPB 04+ROHS

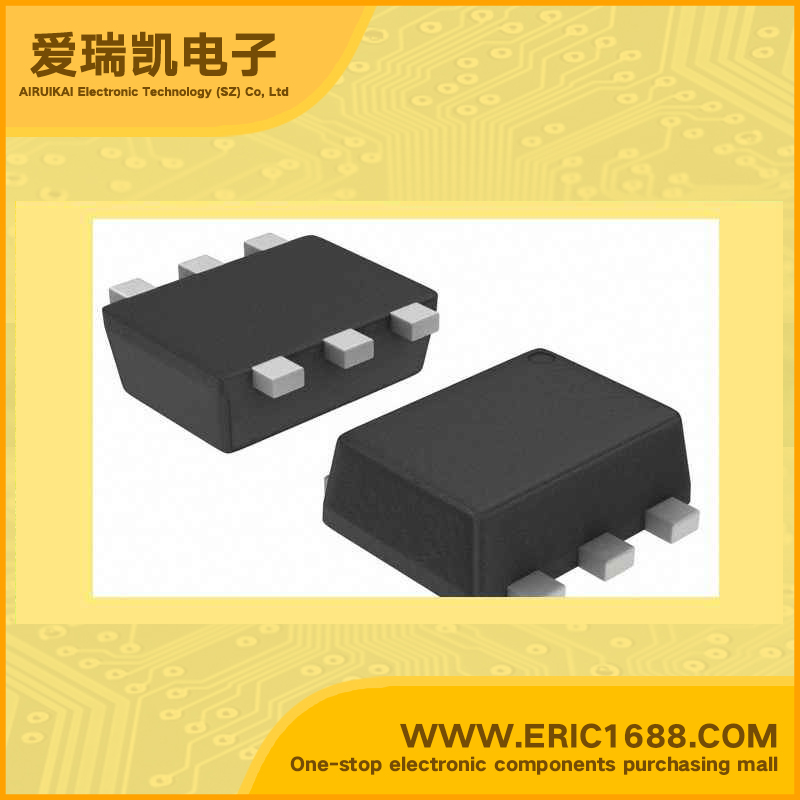

Package：SOT-563
Standard Package：8000
Min Order：100

Hot selling goods

Product description

Collector-Base Voltage(VCBO) Q1/Q2	-50V/50V
Collector-Emitter Voltage(VCEO) Q1/Q2	-50V/50V
Collector Current(IC) Q1/Q2	-100mA/100mA
Input Resistance(R1)	10KΩ/Ohm
Base-Emitter Resistance(R2)	10KΩ/Ohm
(R1/R2) Q1 Resistance Ratio	1
Input Resistance(R1)	10KΩ/Ohm
Base-Emitter Resistance(R2)	10KΩ/Ohm
(R1/R2) Q2 Resistance Ratio	1
DC Current Gain(hFE)	60
Transtion Frequency(fT)
Power Dissipation	500mW/0.5W
Description & Applications	Features •Dual Common Base−Collector Bias Resistor Transistors •NPN and PNP Silicon Surface Mount Transistors with Monolithic Bias Resistor Network •Simplifies Circuit Design •Reduces Board Space •Reduces Component Count •These are Pb−Free Devices
描述与应用	特点 •双共基极 - 集电极偏置电阻晶体管 •NPN和PNP硅表面贴装晶体管与单片偏置电阻网络 •简化电路设计吗？ •缩小板级空间 •减少元件数量 •这些都是Pb-Free设备
