EMF18 Complex Bipolar Digital Transistor 60V -0.15A HEF=120~560 0.15W SOT-563/EMT6 marking F18 switching inverting interface driver circuit

Model：EMF18

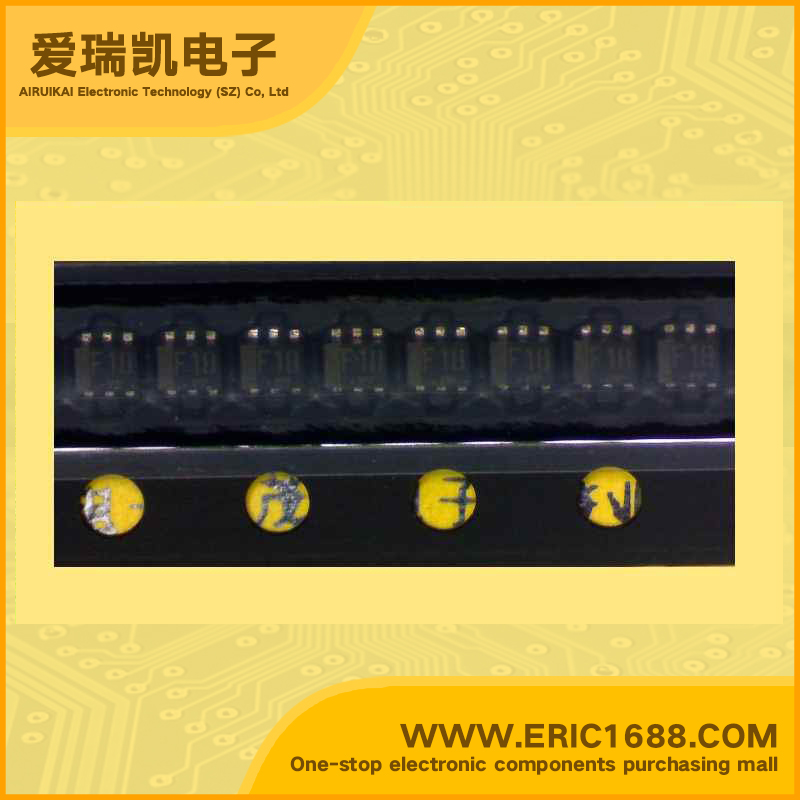

Mark / screen / code / typing：F18
Manufacturer：
Date Code：07NOPB
Package：SOT-563/EMT6
Standard Package：8000
Min Order：100

Hot selling goods

Product description

Collector-Base Voltage(VCBO) Q1/Q2	-60V/60V
Collector-Emitter Voltage(VCEO) Q1/Q2	-50V/50V
Collector Current(IC) Q1/Q2	-150mA/100mA
Q1 Input Resistance(R1)
Q1 Base-Emitter Resistance(R2)
Q1(R1/R2) Q1 Resistance Ratio
Q2 Input Resistance(R1)	47KΩ/Ohm
Q2Base-Emitter Resistance(R2)	47KΩ/Ohm
Q2(R1/R2) Q2 Resistance Ratio	1
DC Current Gain(hFE)	120~560/120~560
Transtion Frequency(fT)	140MHz/250MHz
Pc Power Dissipation	150mW/0.15W
Description & Applications	Features •Power management (dual transistors) •2SA1774 and DTC144EE are housed independently in a EMT or UMT package. •Power switching circuit in a single package. •Mounting cost and area can be cut in half.
描述与应用	特点 •电源管理（双晶体管） •2SA1774和DTC144EE的都装一个EMT或UMT包的独立。 •电源开关电路，在单一封装中。 •安装成本和面积可减少一半
