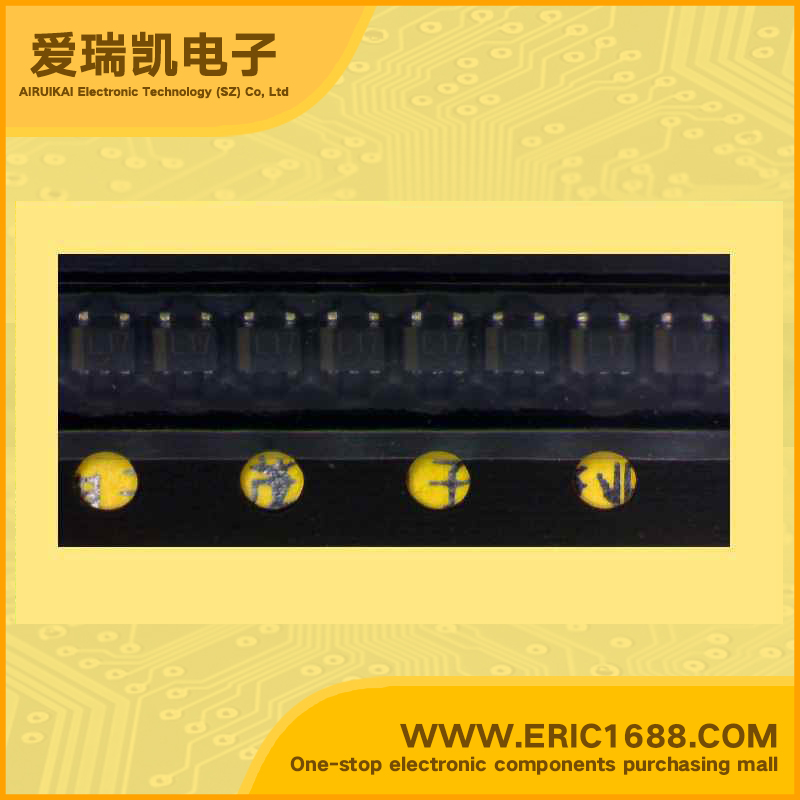

EML17 PNP+SBD Complex Bipolar Transistor R1=R2=47KΩ SOT-553/EMT5 marking L17 switch and digital circuit application

Model：EML17
Mark / screen / code / typing：L17
Manufacturer：
Date Code：08NOPB
Package：SOT-553/EMT5
Standard Package：8000
Min Order：100

Hot selling goods

Product description

BJT TYPE	PNP DTA144E
BJT V(BR)CBO Collector-Base Voltage(VCBO)	-50V
BJT Collector-Emitter Voltage(VCEO)	-50V
BJT Collector Current(IC)	-30MA
BJT Transtion Frequency(fT)	250MHZ
BJT DC Current Gain(hFE)
BJT VCE（sat） Collector-Emitter Saturation Voltage
DIODE TYPE	SBD RB520G-30
DIODE VR Reverse Voltage	30V
DIODE Io Rectified Current	0.1A
DIODE Forward Voltage(Vf)	0.45V
Pc Power Dissipation	0.15W
Description & Applications	General purpose transistor (isolated transistor and diode) DTA144E and a RB520G-30 are housed independently in a EMT package.
