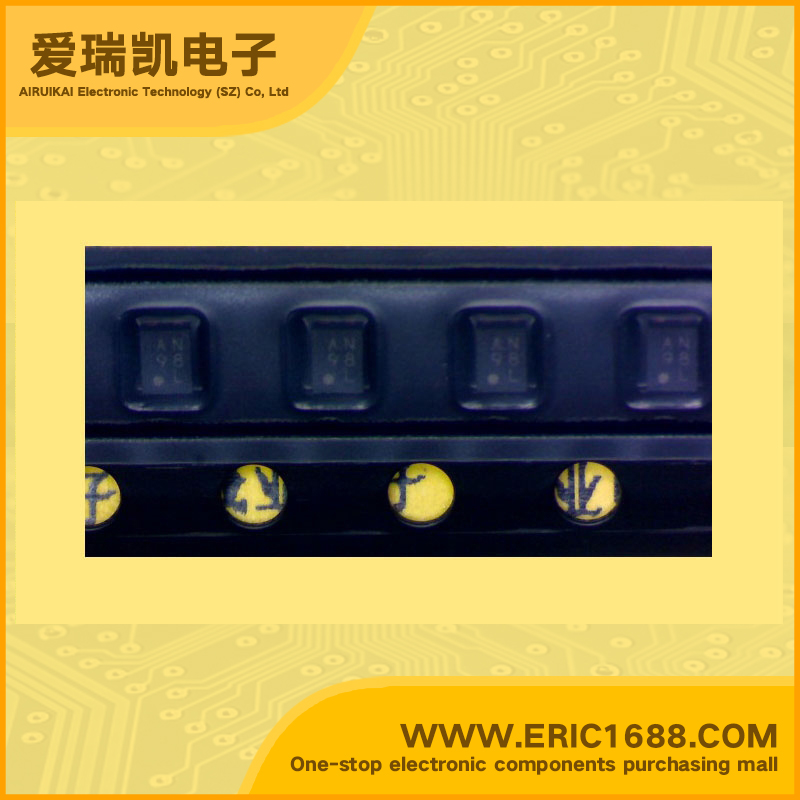

BU34TA2WNVXG LDO Voltage Regulator 3.4V 300mV/0.3V SSON004X1216 marking AN Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.5~5.5V |
| 输出电压VOUT Voltage - Output | 3.4V |
| 输出电流Io Current - Output | 200mA/0.2A |
| 最大压降VDO Voltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 410mW/0.41W |
| Description & Applications | 1ch 200mA CMOS LDO Regulators ；•High-accuracy output voltage of 1% (25 mV on 1.5-V & 1.8-V products） •High ripple rejection: 70 dB (Typ., 1 kHz, VOUT1.8 V)) •Compatible with small ceramic capacitor (CIN=Co=1.0 µF) •Low current consumption: 40 µA •ON/OFF control of output voltage •With built-in overcurrent protection circuit and overheat protection circuit •With built-in output discharge circuit •Adopting microminiature power package SSON004X1216 |
| 描述与应用 | 1路200mA的CMOS LDO稳压器;•高输出电压精度为1％（25 mV的1.5-V和1.8-V产品） •高纹波抑制：70分贝（典型值，1 kHz时，VOUT1.8 V）） •兼容小型陶瓷电容器（CIN= CO= 1.0μF） •低消耗电流：40μA •ON / OFF控制输出电压 •内置过电流保护电路，过热保护电路 •内置输出放电电路 •采用超小型功率封装SSON004X1216 |
