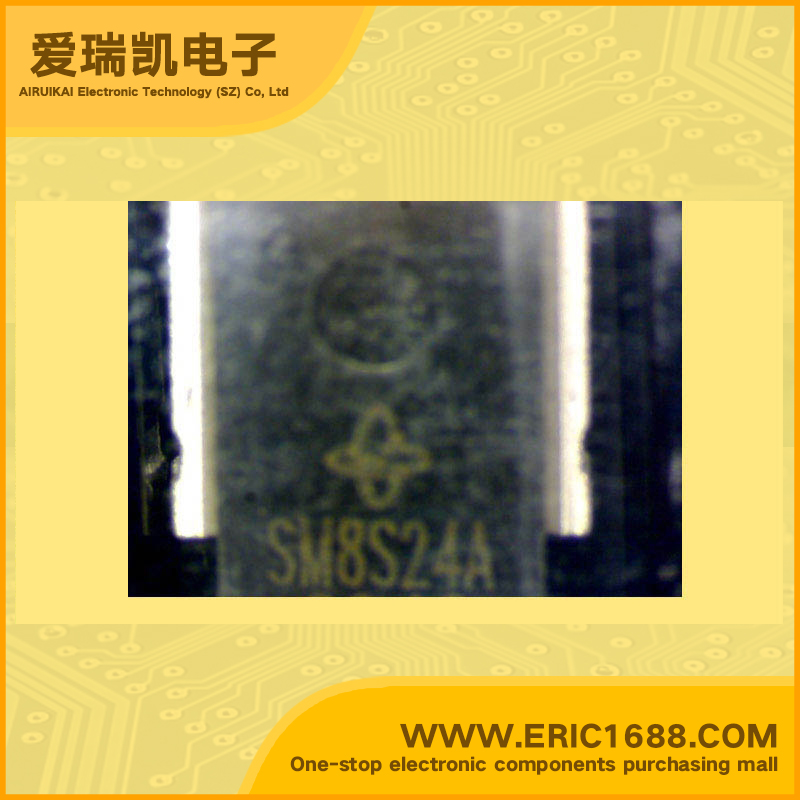

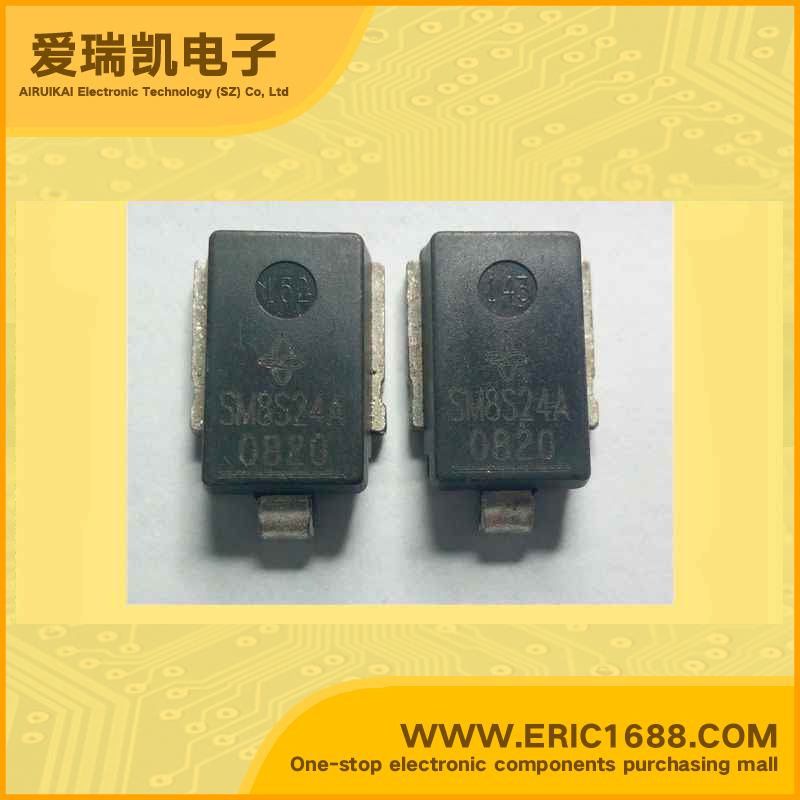

SM8S24A TVS/ESD 24V 170A 8W DO-218 marking SM8S24

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
24V
反向击穿电压VBR
Breakdown Voltage
26.7V~29.5V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
6600W
峰值脉冲电流IPPm
Peak Forward Surge Current
170A
额定耗散功率Pd
Power dissipation
8W
Description & Applications Features • Surface Mount Automotive Transient Voltage Suppressor • Ideally suited for load dump protection • Plastic package has Underwriters Laboratory Flammability Classification 94V-0 • High temperature stability due to unique oxide passivation and patented PAR®construction • Integrally molded heatsink provides a very low thermal esistance for maximum heat dissipation • Low leakage current at TJ = 175°C • High temperature soldering guaranteed:260°C for 10 seconds at terminals • Meets ISO7637-2 surge spec. • Low forward voltage drop
描述与应用 特点 •汽车表面贴装瞬态电压抑制器 •非常适合负载突降保护 •塑料包装有保险商实验室可燃性分类94V-0 •高温稳定性,由于独特的氧化物钝化和专利PAR®建设 •一体成型的散热片提供了非常低的热最大散热阻力 •低漏电流TJ= 175°C •高温焊接保证:260°C下10秒钟码头 •符合ISO7637-2的浪涌规范。 •低正向压降
