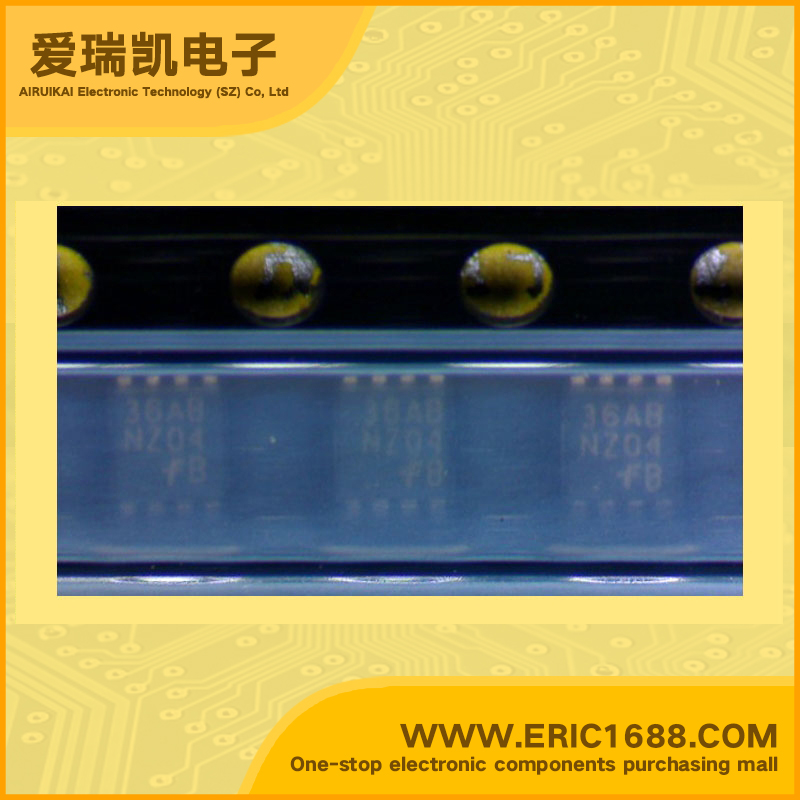

Integrated Circuit（IC） inverter NC7NZ04K8X VFSOP8/US8 marking NZ04
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 3 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -32mA，32mA |
| 低逻辑电平 Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平 Logic Level - High | 1.55V~3.8V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 2.4ns @ 4.5V~5.5V，50pF |
| Description & Applications | TinyLogic UHS Inverter ；Features Space saving US8 surface mount package MicroPak leadless package Ultra High Speed; tPD 2.4 ns typ into 50 pF @5V VCC High Output Drive; ±24 mA @3V VCC Broad VCC Operating Range: 1.65V to 5.5V Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented |
| 描述与应用 | TinyLogic UHS变频器;特性 US8表面贴装封装节省空间 采用MicroPak无铅封装 超高速TPD2.4 ns（典型值）为50 pF的@ 5V VCC 高输出驱动器，±24毫安@ 3V VCC 宽广的VCC工作电压范围：1.65V到5.5V 掉电高阻抗输入/输出 过压容限输入方便5V3V转换 专利的噪声/ EMI抑制电路实施 |
