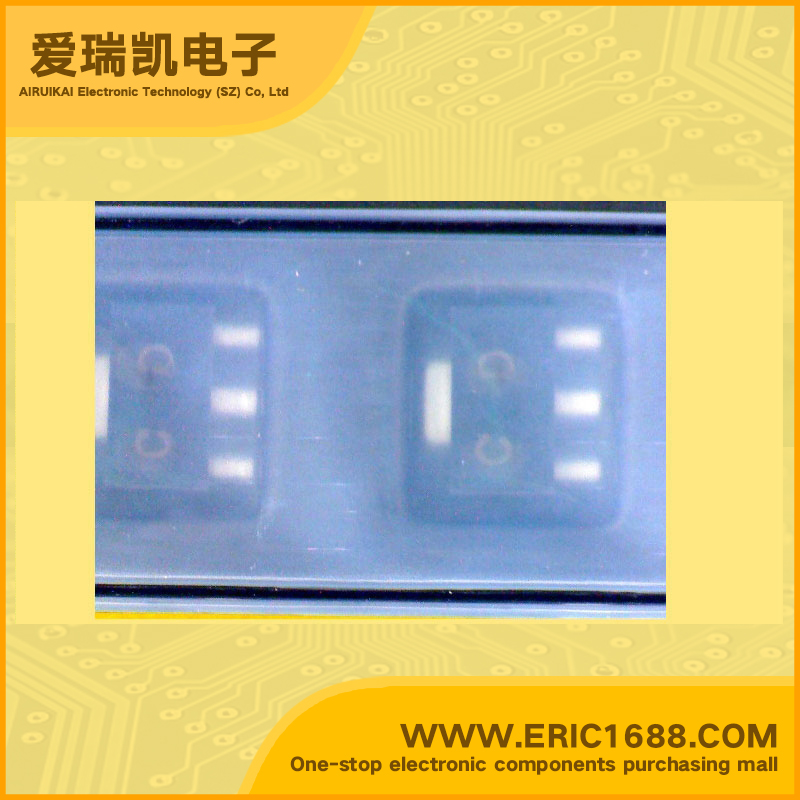

BCX6825TA NPN Transistors(BJT) 25V 1A 100MHz 60~400 500mV/0.5V SOT-89 marking CD

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
25V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
20V
集电极连续输出电流IC
Collector Current(IC)
1A
截止频率fT
Transtion Frequency(fT)
100MHz
直流电流增益hFE
DC Current Gain(hFE)
60~400
管压降VCE(sat)
Collector-Emitter Saturation Voltage
500mV/0.5V
耗散功率Pc
Power Dissipation
1W
Description & Applications20V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR IN SOT89 • BVCEO > 20V • High current capability Maximum Continuous Current IC = 1A • Low saturation voltage VCE(sat) < 500mV @ 1A • Complementary PNP type: BCX69 • Lead Free, RoHS Compliant (Note 1) • Halogen and Antimony Free, “Green” Device (Note 2) • Qualified to AEC-Q101 Standards for High Reliability
描述与应用20V NPN硅平面中功率晶体管SOT89 •BVCEO> 20V •高电流能力最大连续电流IC= 1A •低饱和电压VCE(sat)的<500mV的@1A •互补PNP类型:BCX69 •无铅,符合RoHS标准(注1) •卤素和锑免费,“绿色”设备(注2) •符合AEC-Q101标准的高可靠性
