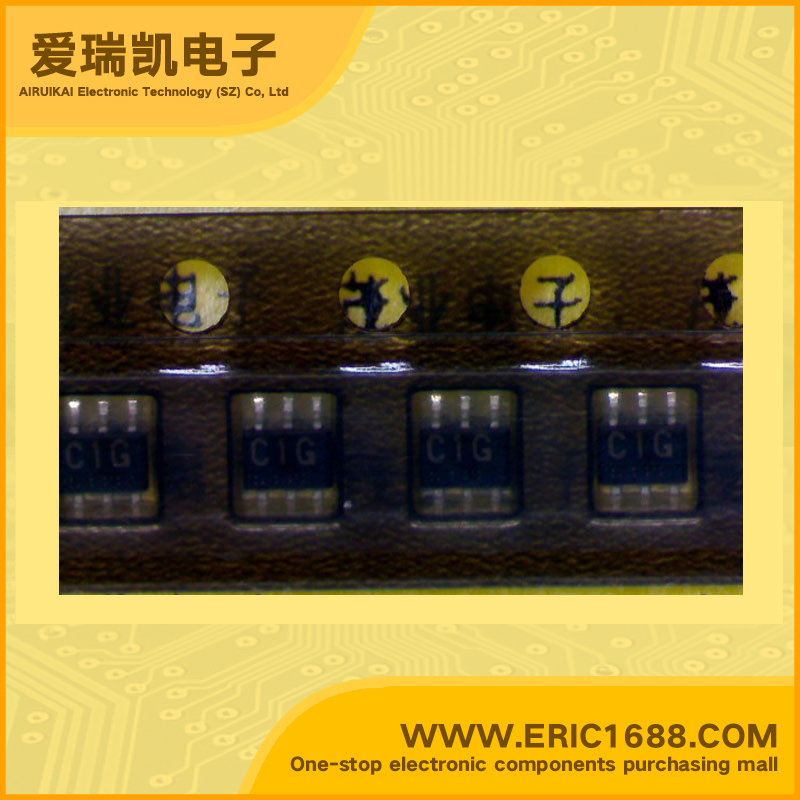

RF amplifier UPC2711TB-E3 SOT-363 marking C1G

Hot selling goods

Product description
频率
Frequency
2.7GHz~3GHz
P1dB
增益
Gain
11dB~16.5dB
噪声系数
Noise Figure
5dB~6.5dB
RF 类型
RF Type
手机,DBS,PCS Cellular, DBS, PCS
电源电压
Voltage - Supply
4.5V~5.5V
电源电流
Current - Supply
9mA~15mA
测试频率
Test Frequency
Description & ApplicationsFEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • 2.9 GHz WIDE BAND AMPLIFIER SILICON BIPOLAR MONOLITHIC INTEGRATED CIRCUIT • High power gain : 13 dB TYP. @ f = 1 GHz • Excellent frequency response: 2.9 GHz TYP. @ 3 dB down below the gain at 0.1 GHz • Noise figure : 5 dB • Single supply voltage : 5 V • Input and output matching : 50 : • Super small package : 6 pin mini mold
描述与应用特点 •双极模拟集成电路 •2.9 GHz的宽频带放大器硅双极型单片集成电路 •高功率增益:13 dB(典型值)。 @频率=1 GHz的 •优异的频率响应:2.9 GHz的典型。 @低3 dB的增益在0.1 GHz以下 •噪声系数:5分贝 •单电源电压:5 V •输入和输出匹配50: •超小型包:6针迷你模具
