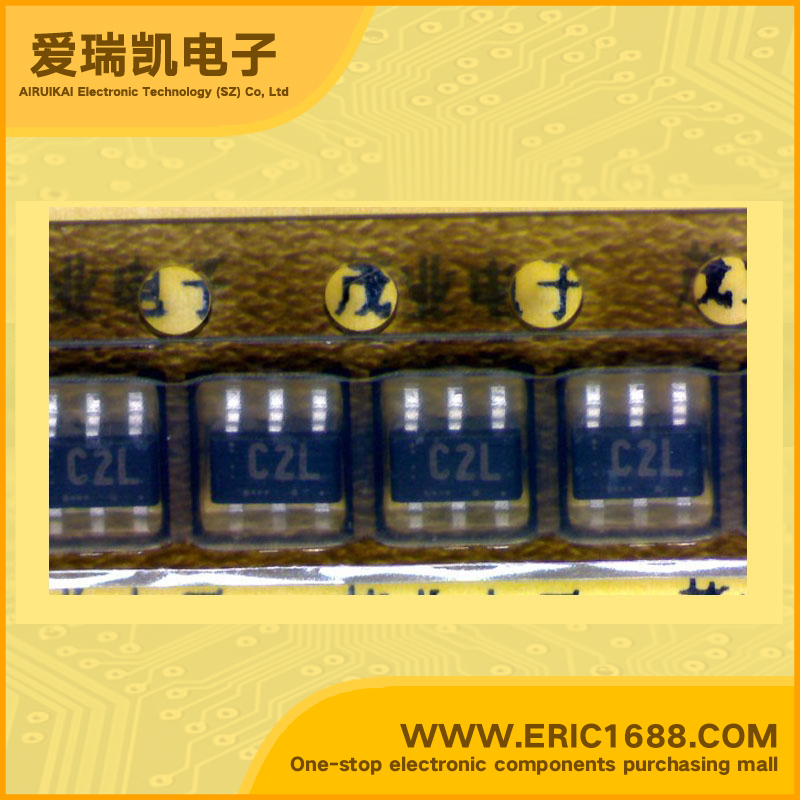

RF amplifier UPC2776TB SOT-363 marking C2L

Hot selling goods

Product description
频率
Frequency
2.3GHz~2.7GHz
P1dB4dBm~6dBm
增益
Gain
21dB~26dB
噪声系数
Noise Figure
6dB~7.5dB
RF 类型
RF Type
WLAN,DBS,TVRO,PCS,WLL
电源电压
Voltage - Supply
4.5V~5.5V
电源电流
Current - Supply
18mA~33mA
测试频率
Test Frequency
1GHz
Description & ApplicationsFEATURES • BIPOLAR ANALOG INTEGRATED CIRCUIT • 5 V, SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER • High-density surface mounting: 6-pin super minimold package • Wideband response : fu = 2.7 GHzTYP. @ 3 dB bandwidth • Medium output power : Po (1 dB) = +6.5 dBm @ f = 1 GHz with external inductor • Supply voltage : VCC = 4.5 to 5.5 V • Power gain : GP = 23 dBTYP. @ f = 1 GHz • Port impedance : input/output 50 Ω APPLICATION • Systems required wideband operation from HF to 2.0 GHz
描述与应用特点 •双极模拟集成电路 •5 V,SUPER MINIMOLD硅MMIC 中等输出功率放大器 •高密度表面安装:6-pin超级迷你模具包 •宽带回应:FU =2.7 GHzTYP, @3 dB带宽 •中等输出功率:宝(1分贝)=+6.5 dBm的@ F =1 GHz的外部电感器 •电源电压:VCC=4.5到5.5 V •功率增益:GP=23 dBTYP。 @频率=1 GHz的 •输入/输出端口阻抗:50欧姆 应用 •系统需要从HF到2.0 GHz的宽带操作
