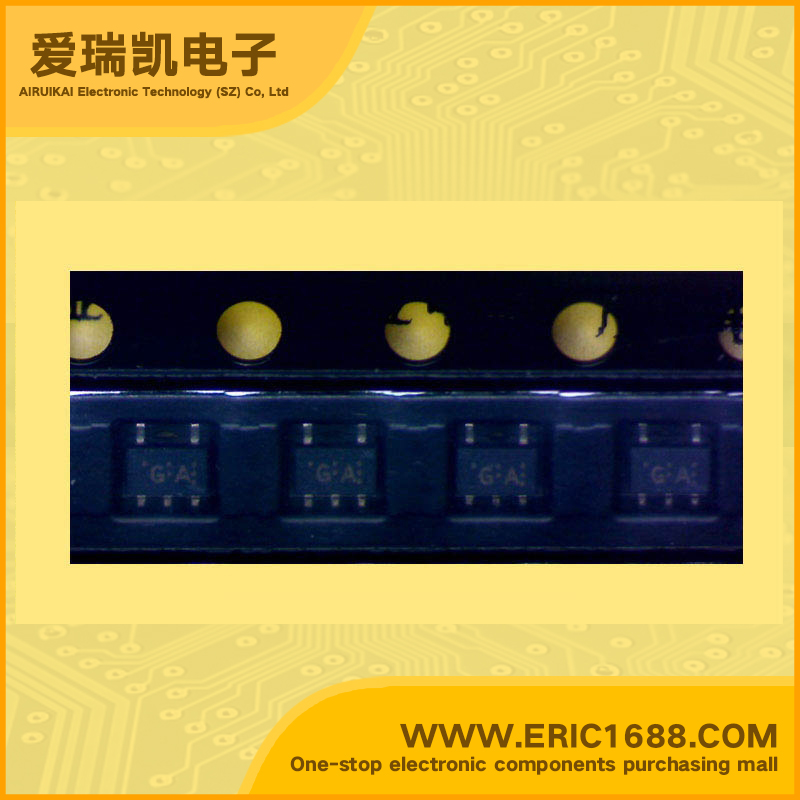

Integrated Circuit(IC) Inverting Schmitt trigger TC7SET14FU SOT-353/USV marking GA

Hot selling goods

Product description
逻辑类型
Logic Type
反相施密特触发器 Inverting Schmitt trigger
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
4.5V~5.5V
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.8v
高逻辑电平
Logic Level - High
2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
9ns @ 4.5V ~ 5.5V,50pF
Description & ApplicationsSCHMITT INVERTER ;High speed ................................. tpd = 5.0 ns (typ.) at VCC = 5 V, CL = 15pF • Low power dissipation .............. ICC = 2 μA (max) at Ta = 25°C • Compatible with TTL outputs. • 5.5V tolerant input.
描述与应用施密特逆变器;高速................................. TPD= 5.0纳秒(典型值)  在VCC = 5 V,CL=15PF •低功耗.............. ICC= 2μA(最大值)在Ta = 25°C •兼容TTL输出。 •5.5V宽容输入。
