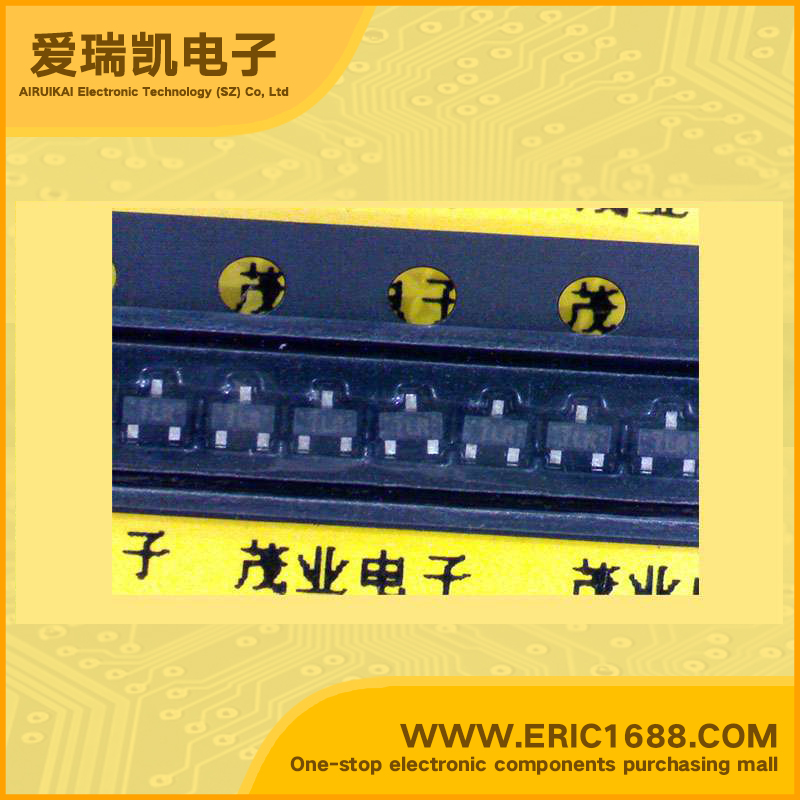

2SA2174GRL PNP transistors(BJT) -60V -100mA/-0.1A 80MHz 160~460 -500mV/-0.5V SOT-523 marking 7LR amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
-60V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
−50V
集电极连续输出电流IC
Collector Current(IC)
−100mA/-0.1A
截止频率fT
Transtion Frequency(fT)
80MHz
直流电流增益hFE
DC Current Gain(hFE)
160~460
管压降VCE(sat)
Collector-Emitter SaturationVoltage
−500mV/-0.5V
耗散功率Pc
PoWer Dissipation
125mW/0.125W
Description & ApplicationsPNP Silicon epitaxial planar type For general amplification Complementary to 2SC6054G Features High forward current transfer ratio hFE SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing.
描述与应用PNP硅外延平面型 对于一般放大 互补型2SC6054G 特点 高正向电流传输比HFE SS-迷你型包装,允许缩小设备规模和通过自动插入磁带包装。
