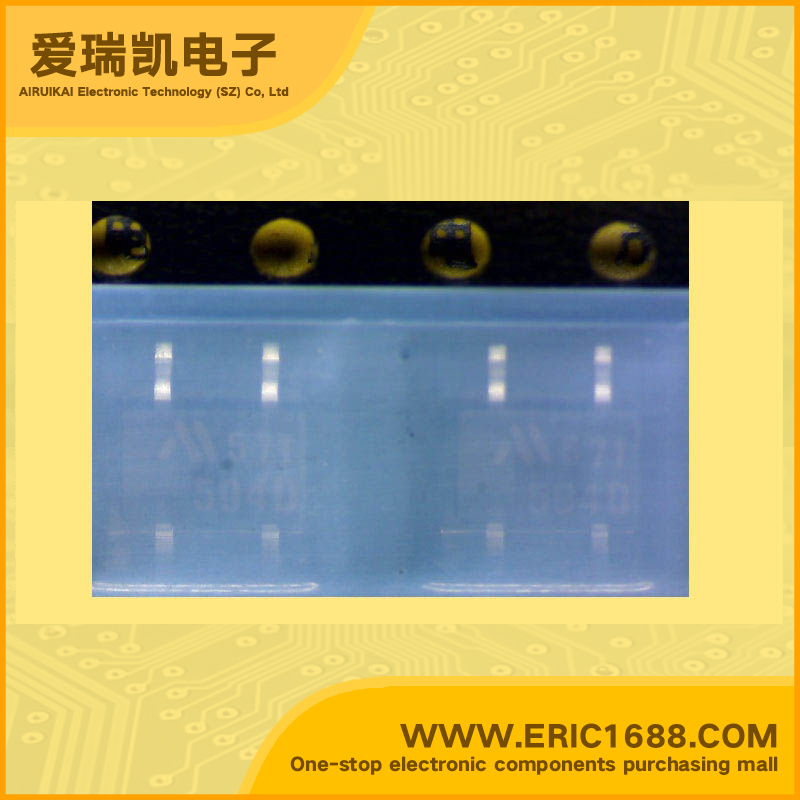

PST594DMT Voltage Supervisor 4.2V MMP-4A marking 594D Hysteresis voltage provided in detection voltage 50mV typ

Hot selling goods

Product description
受检测电压数
Number of Voltages Monitored
1
检测电压/复位阈值电压VDET
Voltage - Threshold
4.2V
工作电压VIN
Voltage - Supply
-0.3~10V
高/低有效复位
Reset
低 Active Low
输出类型
Output Type
open collection
看门狗
Watchdog
无 No
功耗Pd
Power Dissipation
200mW/0.2W
Description & Applications•IC for System Reset •Ultra-low current consumption ICCH=7.5µA typ. ICCL=400µA typ. •Low operating limit voltage 0.65V typ. •Output current high for ON 30mA typ. •Hysteresis voltage provided in detection voltage 50mV typ. •Delay time can set over a wide range using external capacitor and resistor. 10µS~10S
描述与应用•系统复位IC •超低电流消耗7.5μA(典型值)= ICCH ICCL=400μA(典型值) •低工作电压的限制0.65V(典型值) •高输出电流ON30毫安典型 •提供滞后电压检测电压50mV的典型 •延迟时间可以设置在很宽的范围内使用外部电阻和电容。 10μS~~10S
