MCH3209 NPN 40V 3A 450MHZ HEF=200~560 SOT323 MARKING CJ

Model：MCH3209

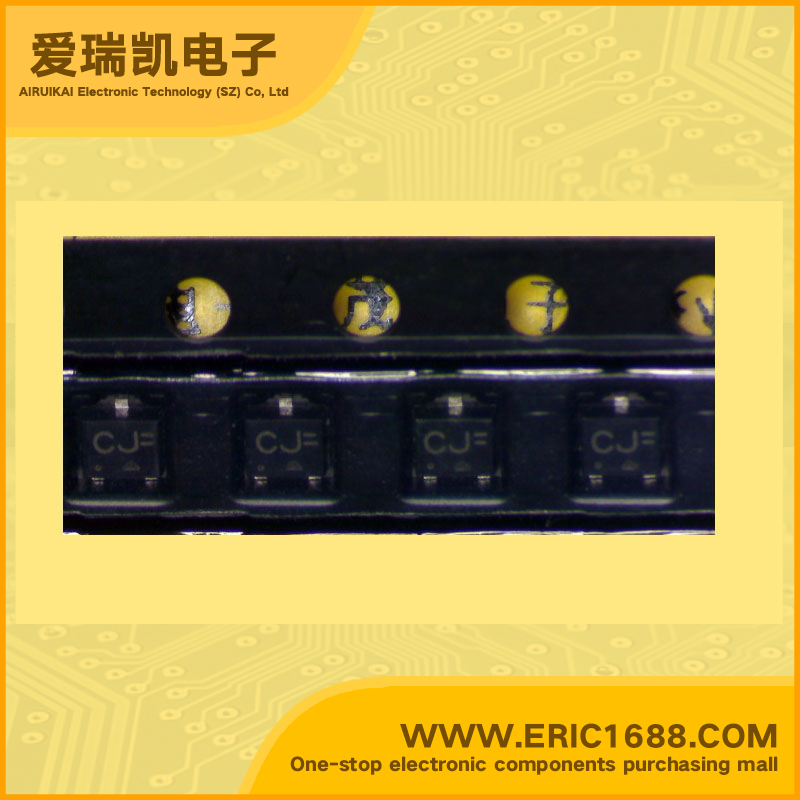

Mark / screen / code / typing：CJ
Manufacturer：
Date Code：05+ 05+
Package：SOT-323
Standard Package：3000
Min Order：10

Hot selling goods

Product description

V(BR)CBO Collector-Base Voltage	40V
V(BR)CEO Collector-Emitter Voltage	30V
Collector Current(IC)	3A
Transtion Frequency(fT)	450MHZ
DC Current Gain(hFE)	200~560
VCE（sat） Collector-Emitter Saturation Voltage	0.23V
Power dissipation　（Pd）	0.8W
Description & Applications	DC / DC Converter Applications • Relay drivers, lamp drivers, motor drivers, flash. • Adoption of MBIT processes. • High current capacitance. • Low collector-to-emitter saturation voltage. • High-speed switching. • Ultrasmall package facilitates miniaturization in end products (mounting height : 0.85mm). • High allowable power dissipation.
